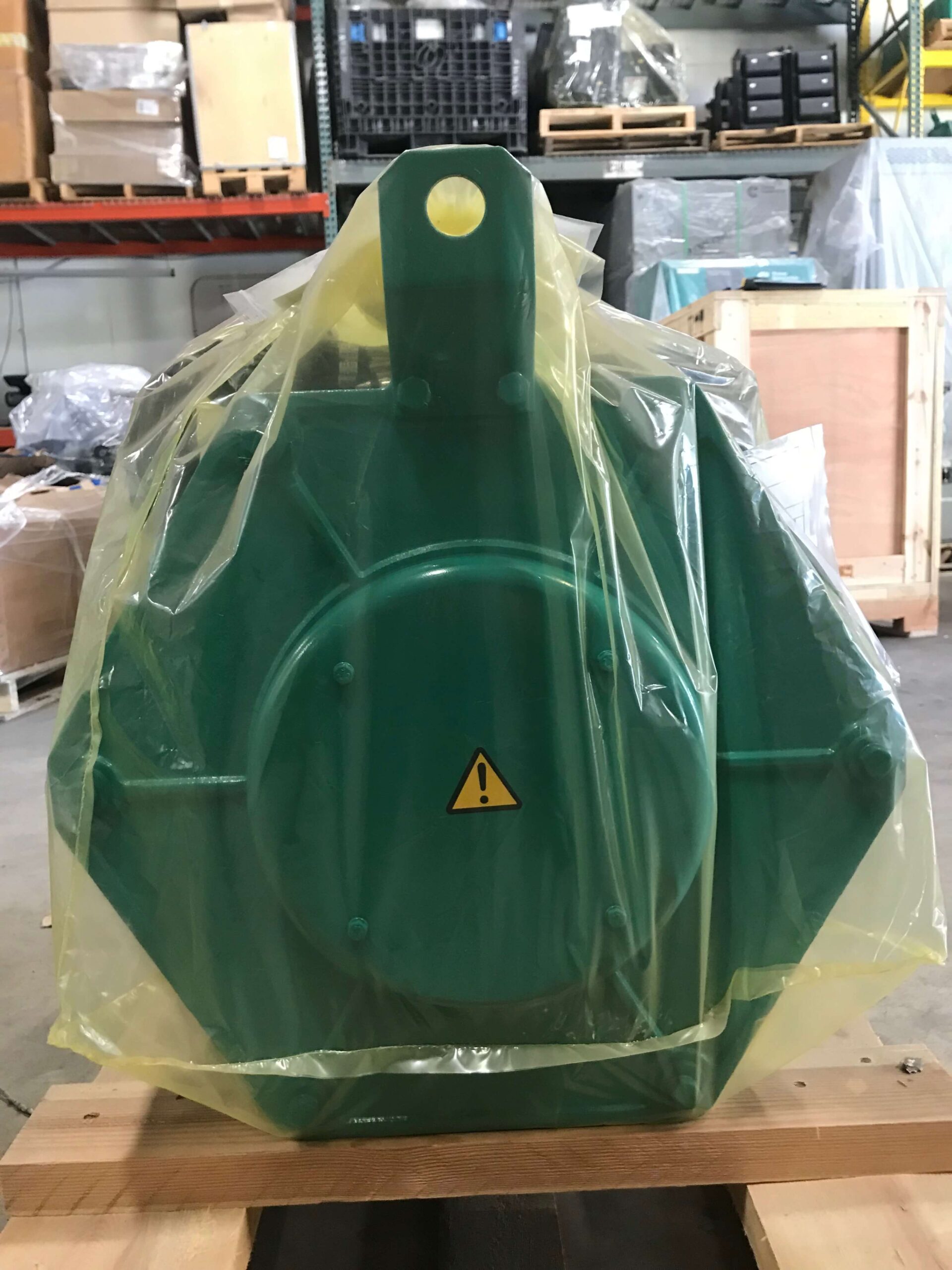

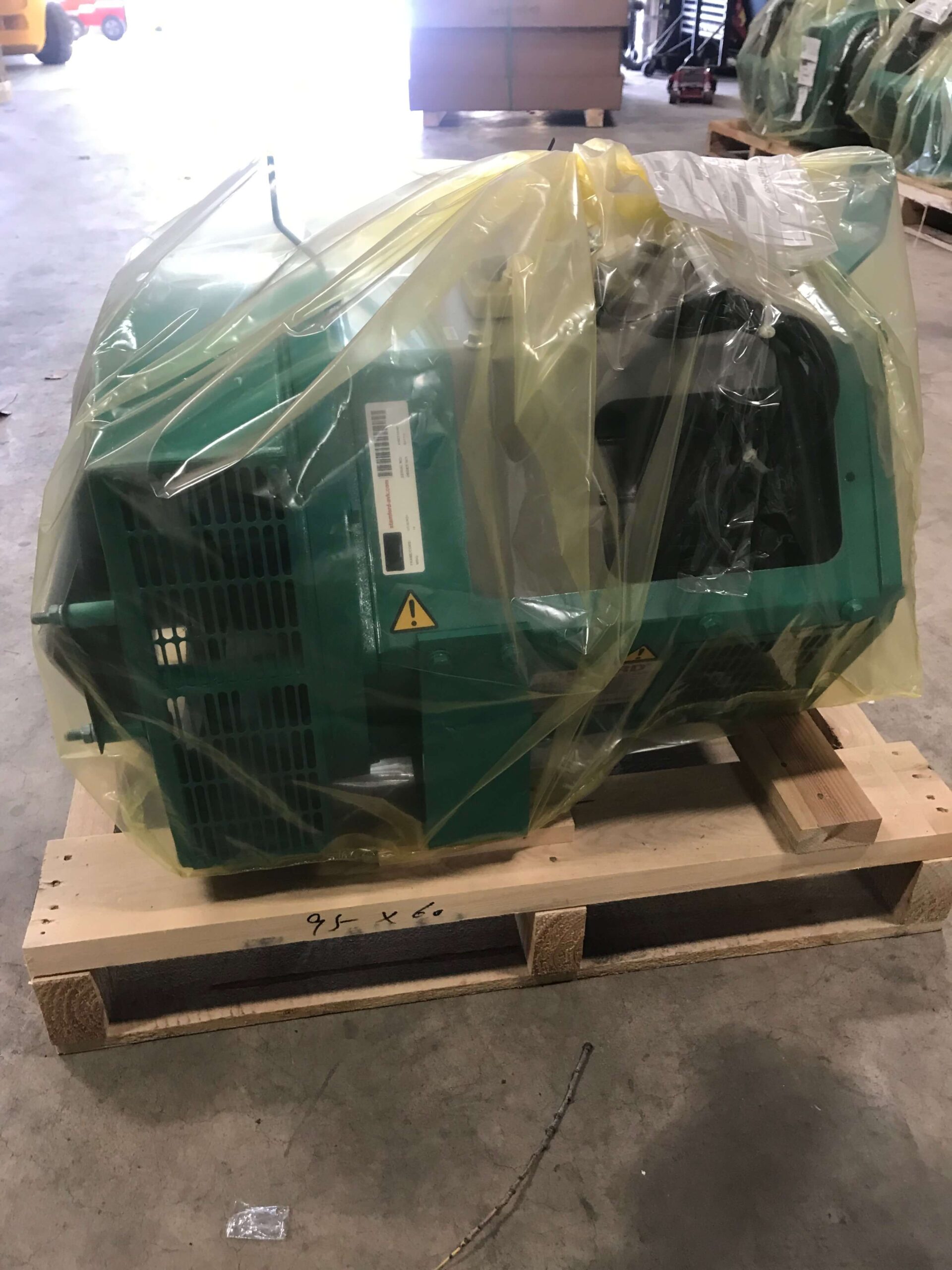

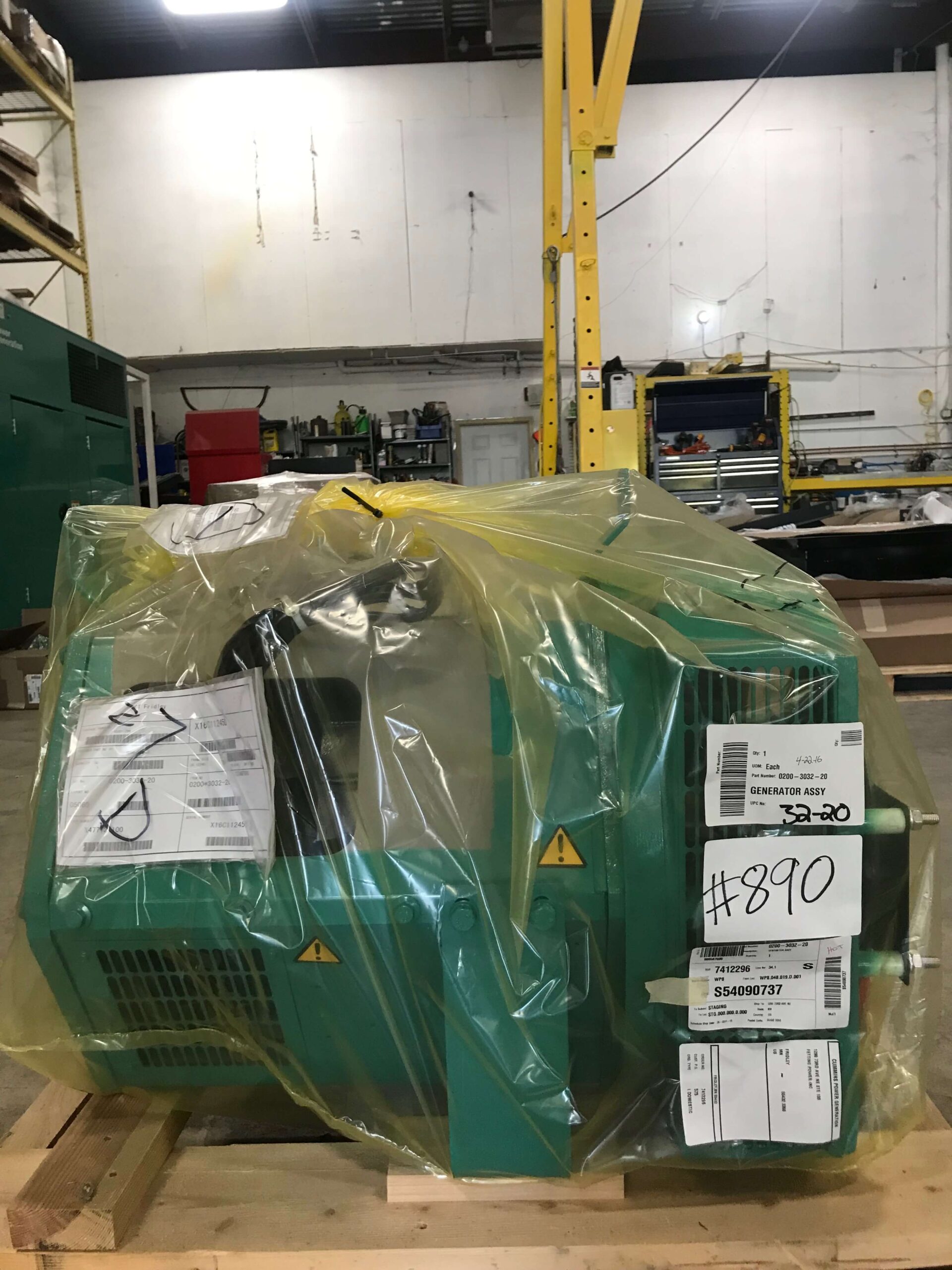

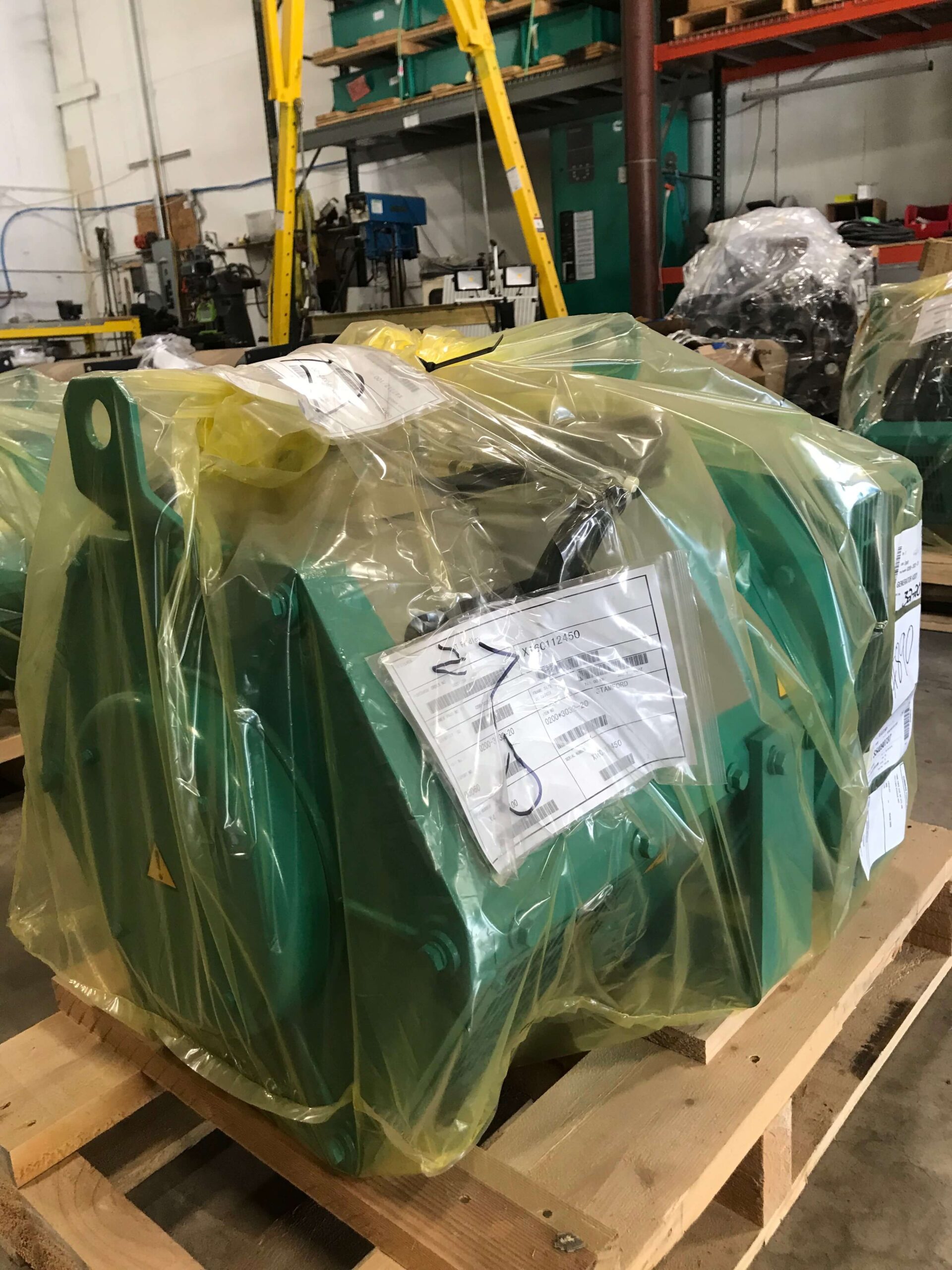

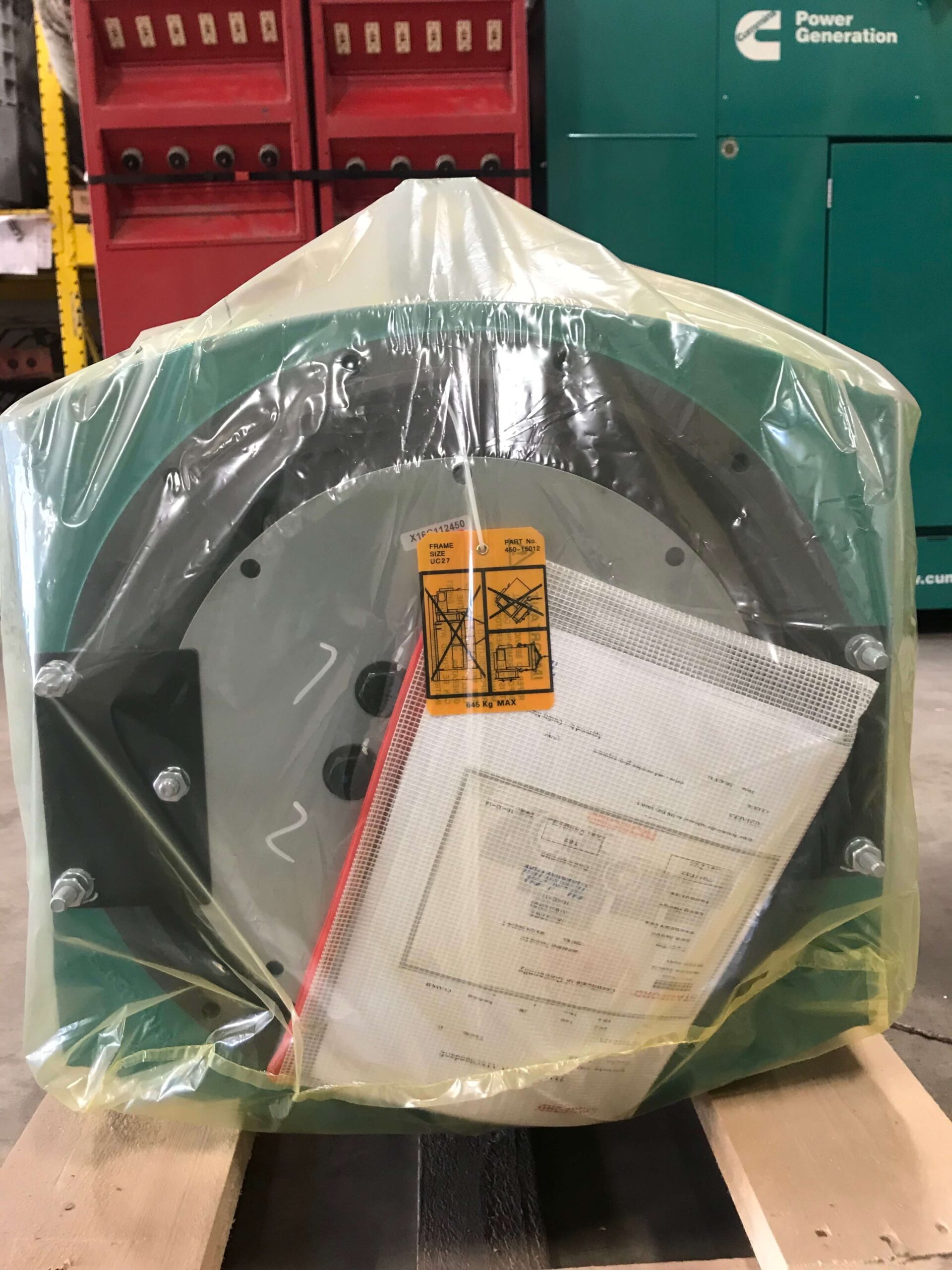

New 105kW Stamford Alternator UCI274D1 | P/N: 0200-3032-20


  • New
  • Stamford
  • Year: 2016

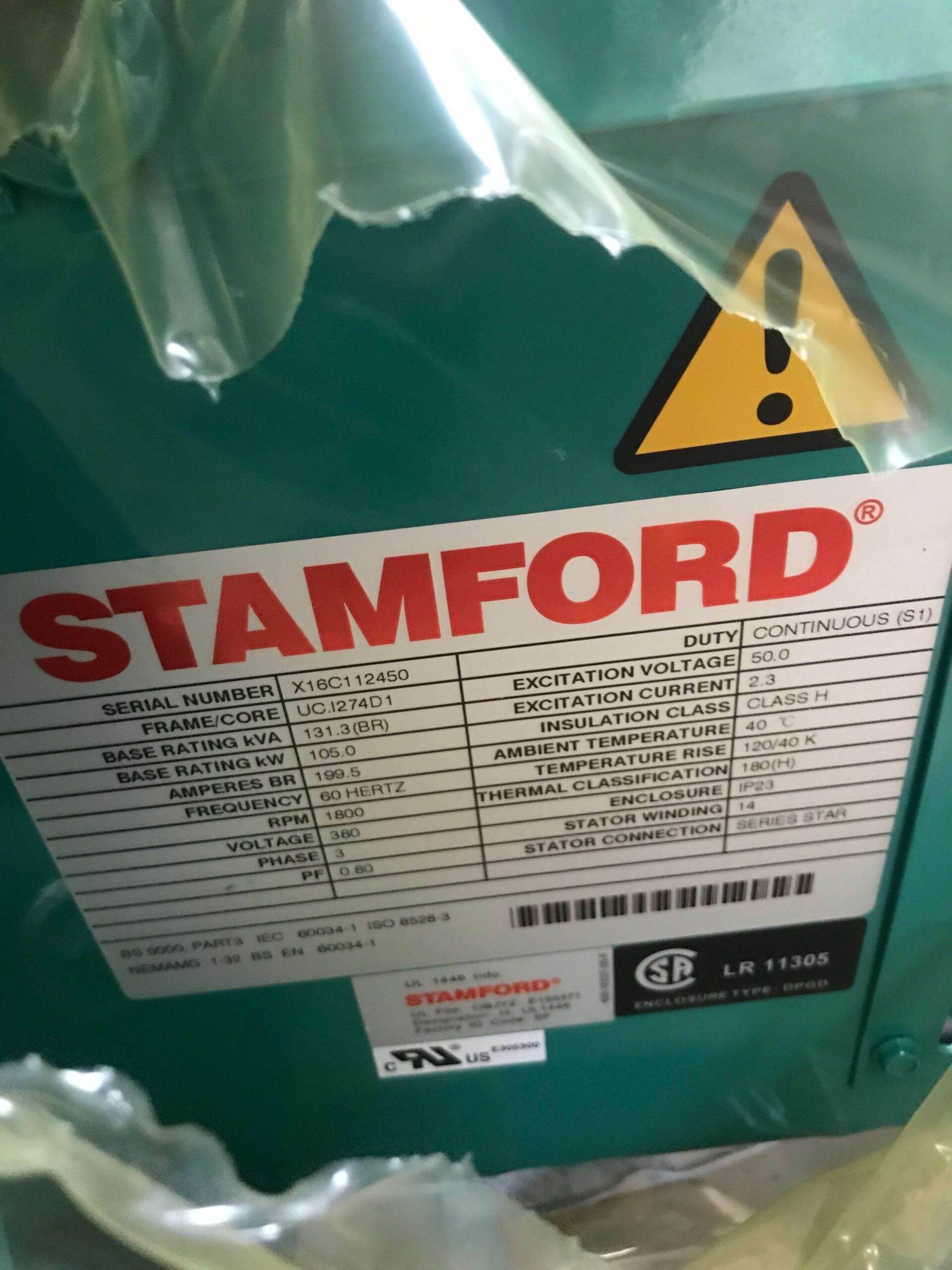

  • Model: UCI274D1
  • Base Rating: 105kW (131.3kVA)
  • 199.5 Amps
  • 60Hz
  • 1800 RPM
  • 208V or 380V (Commonly used in Brazil and Panama)
  • 3 Phase
  • 0.8 Power Factor
  • Duty: Continuous (S1)
  • Excitation Voltage: 50.0
  • Excitation Current: 2.3
  • Insulation Class: Class H
  • Ambient Temperature: 40 C
  • Temperature Rise: 120/40 K
  • Thermal Classification: 180(H)
  • Enclosure: IP23
  • Stator Winding: 14
  • Stator Connection: Series Star
  • 12 Hole Bell Housing – SAE 2
  • 8 Hole Flywheel – SAE 11 1/2
