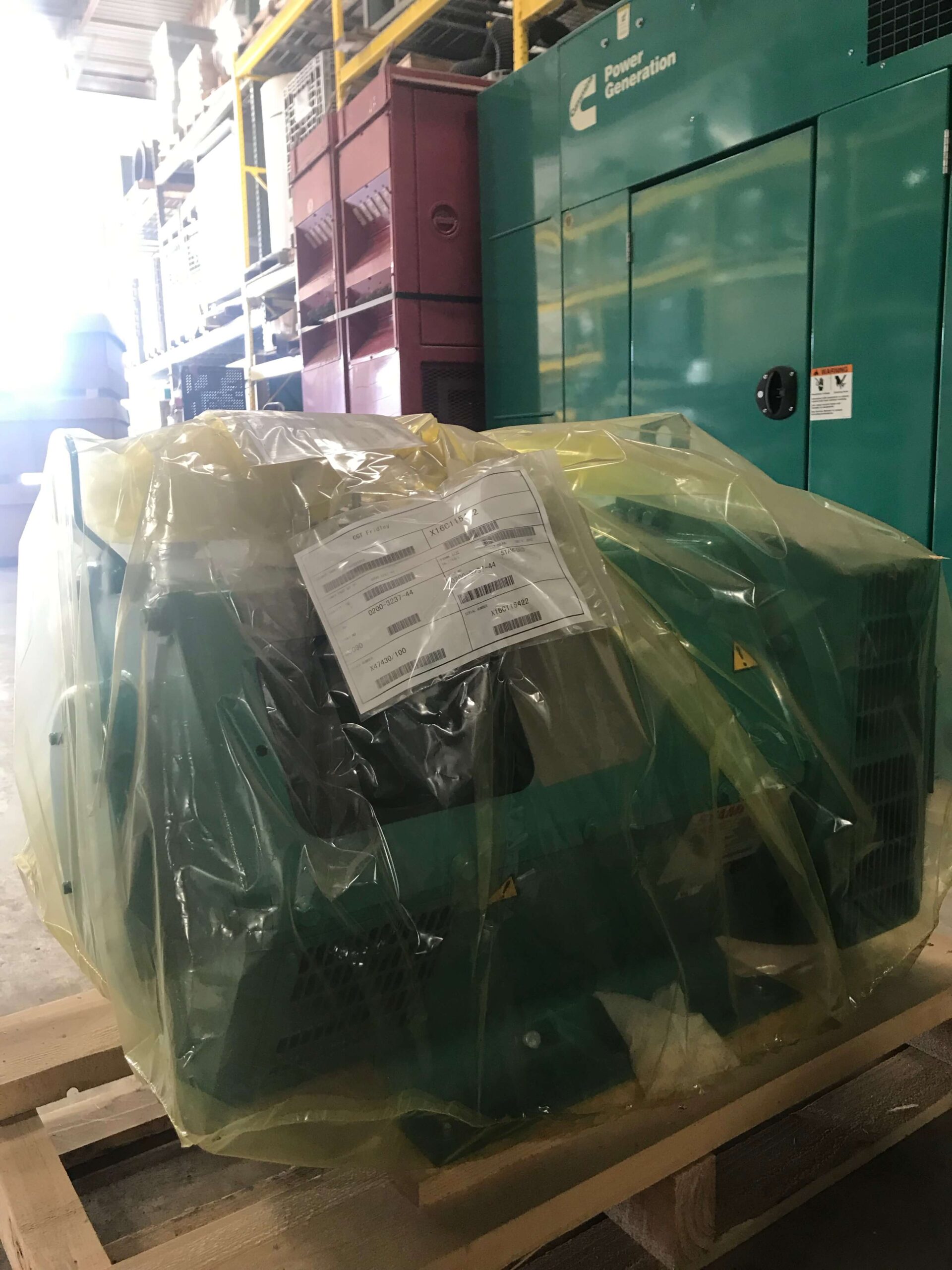

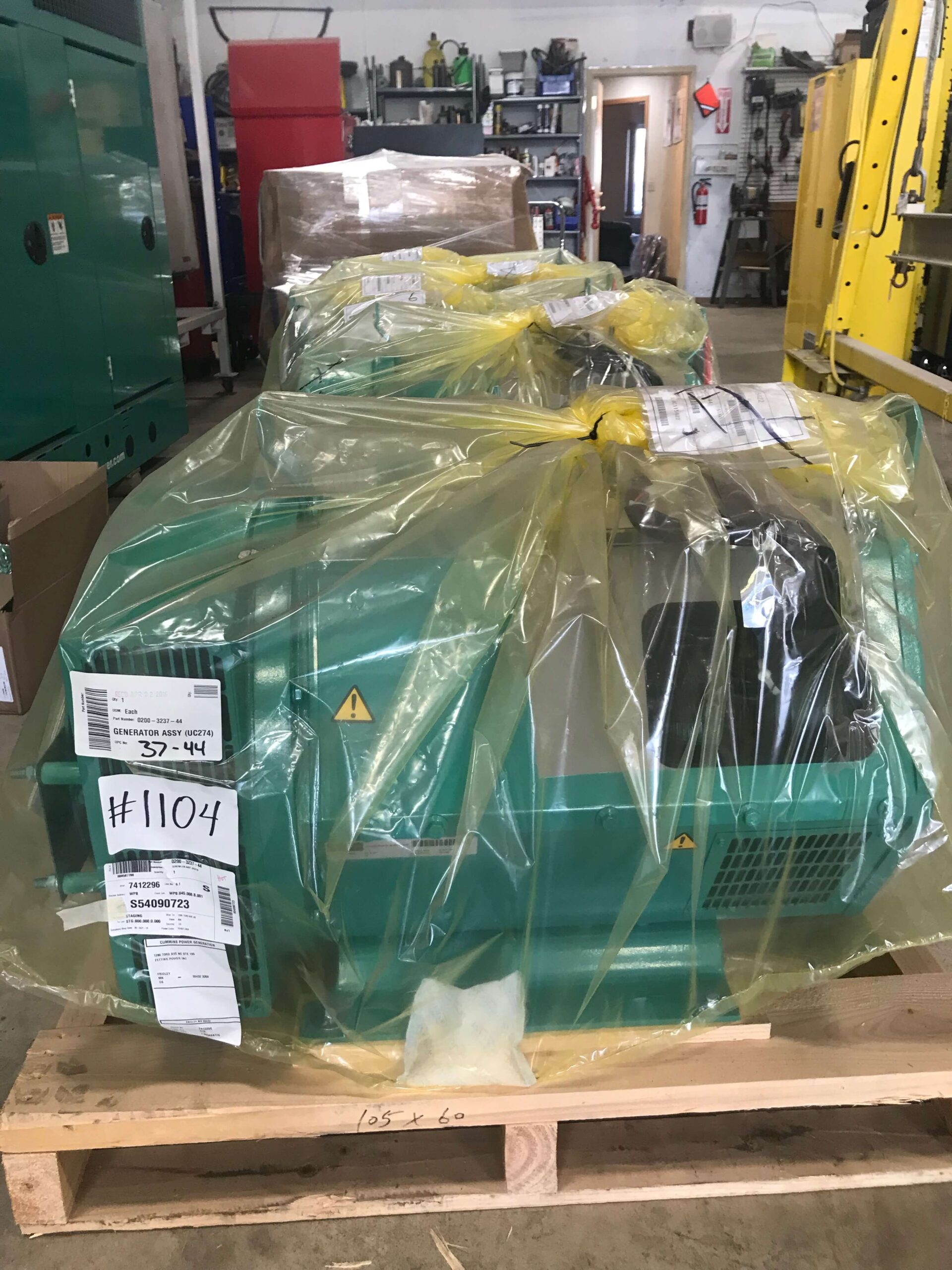

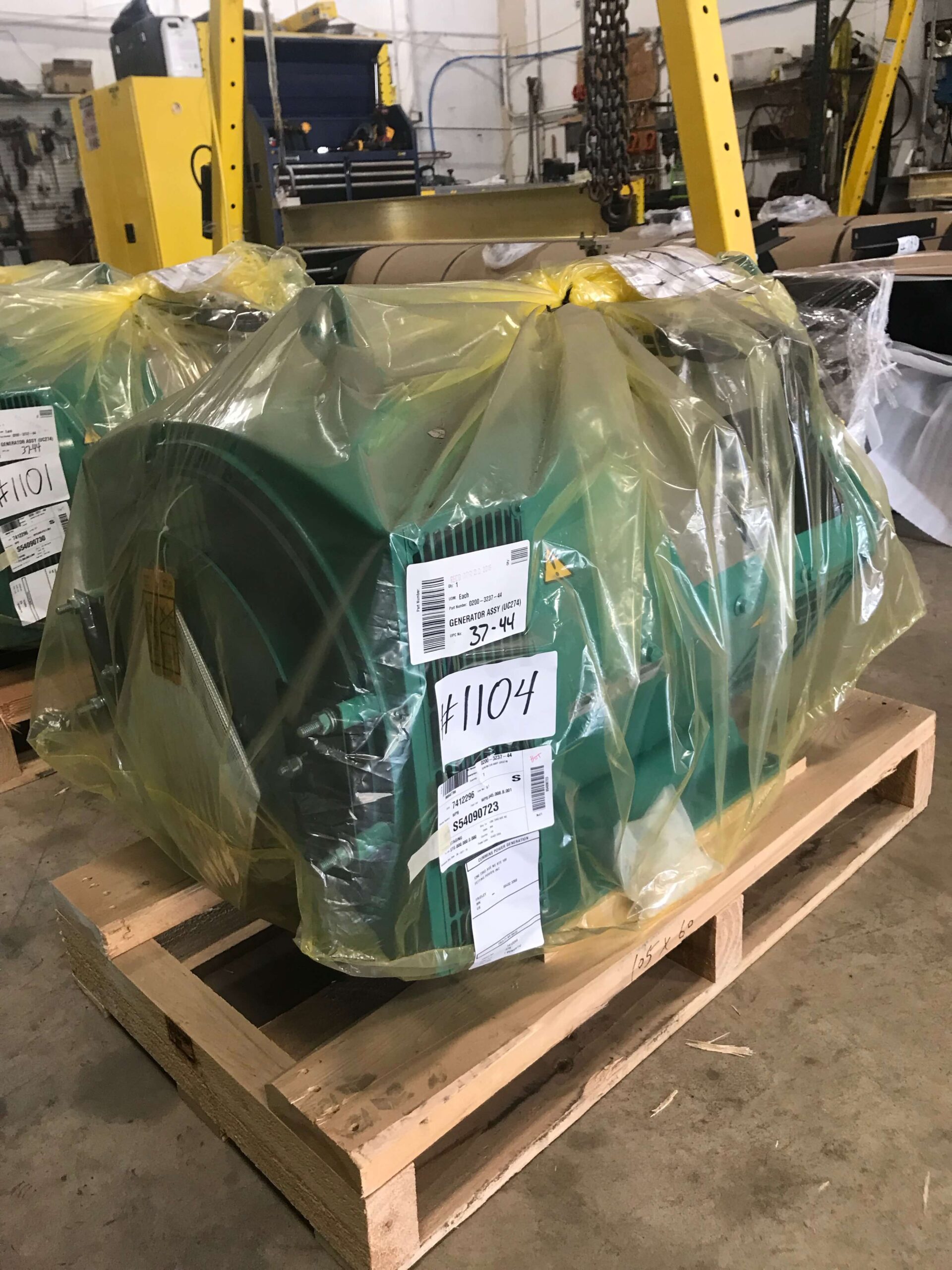

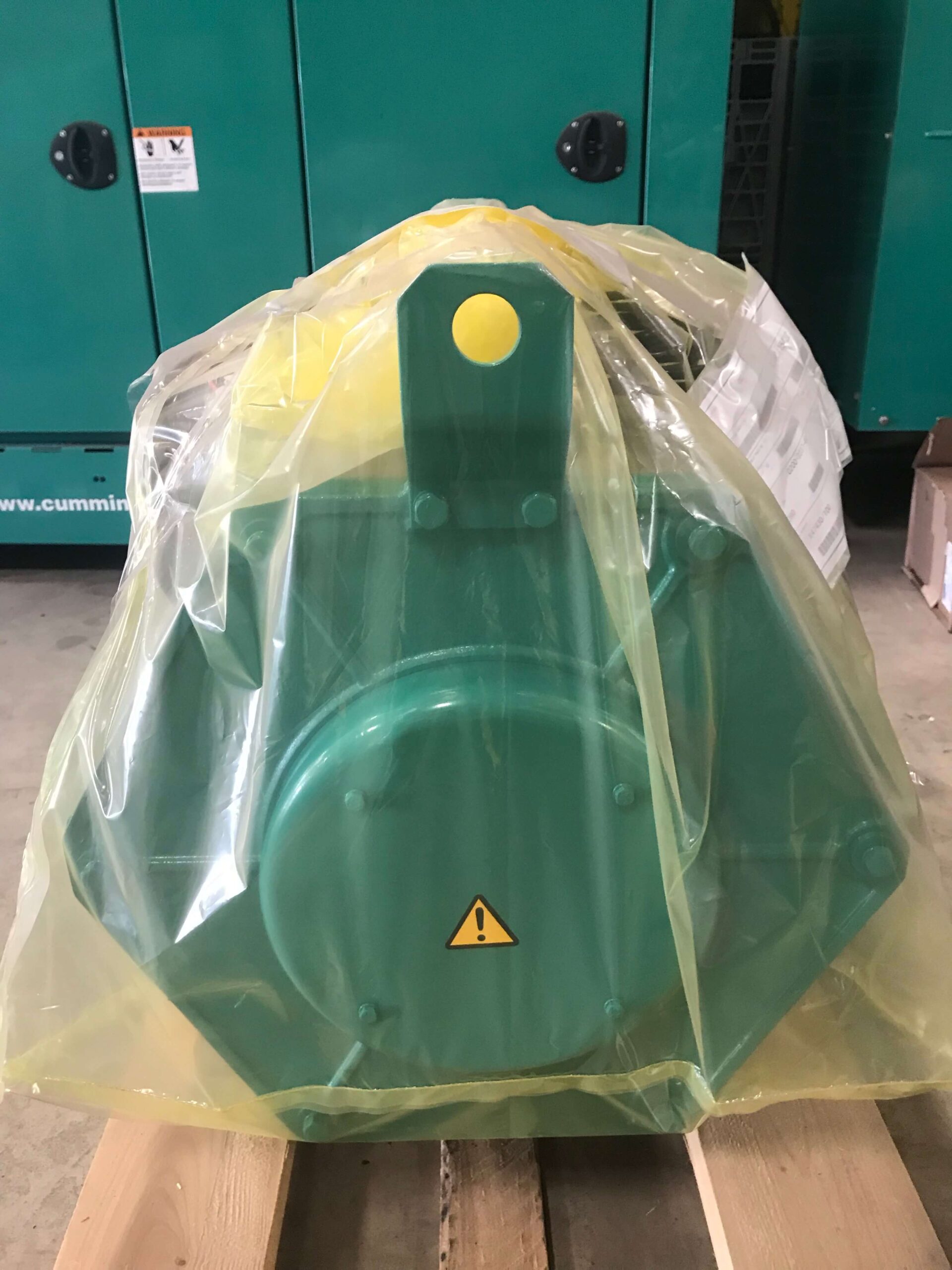

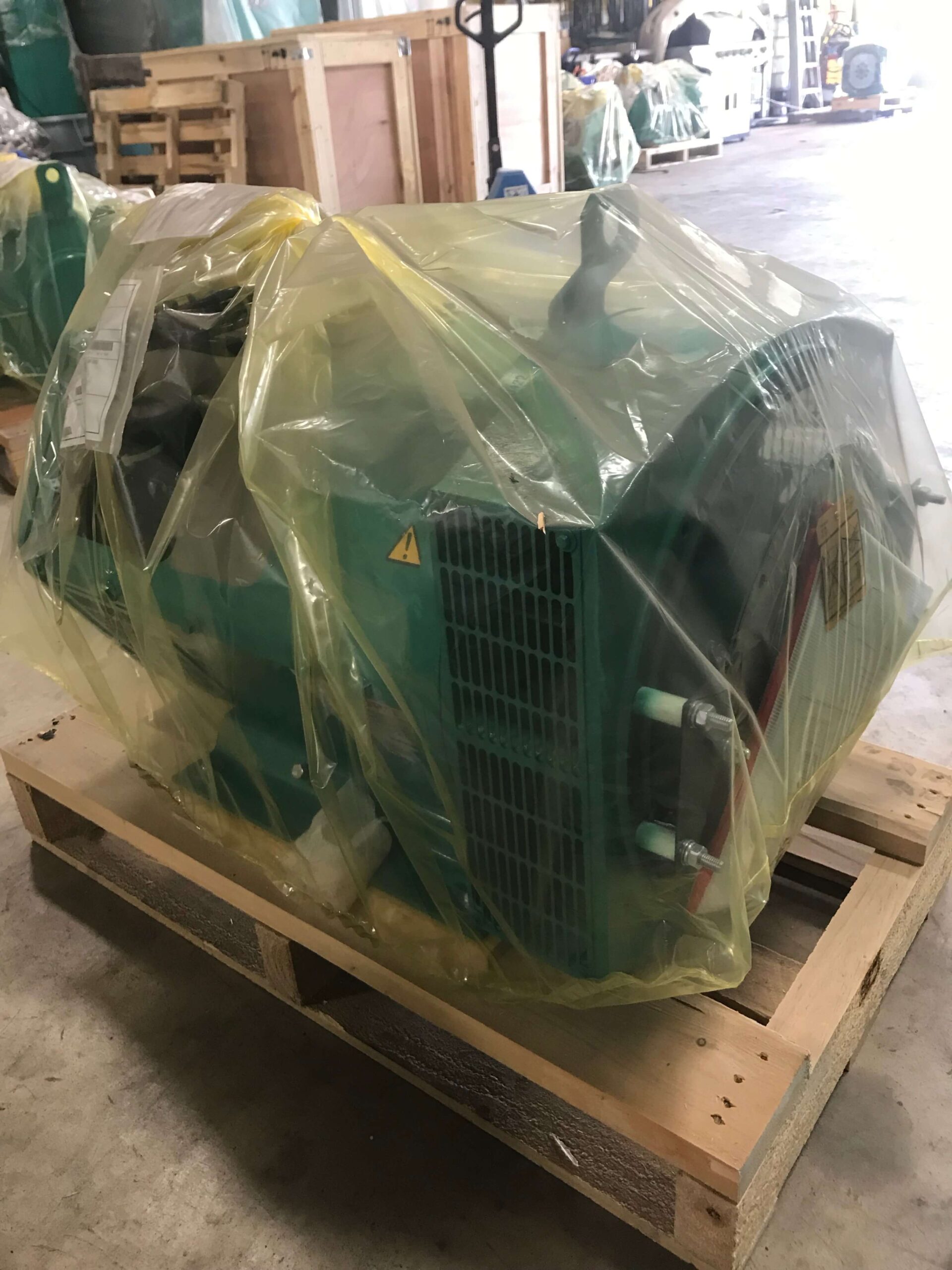

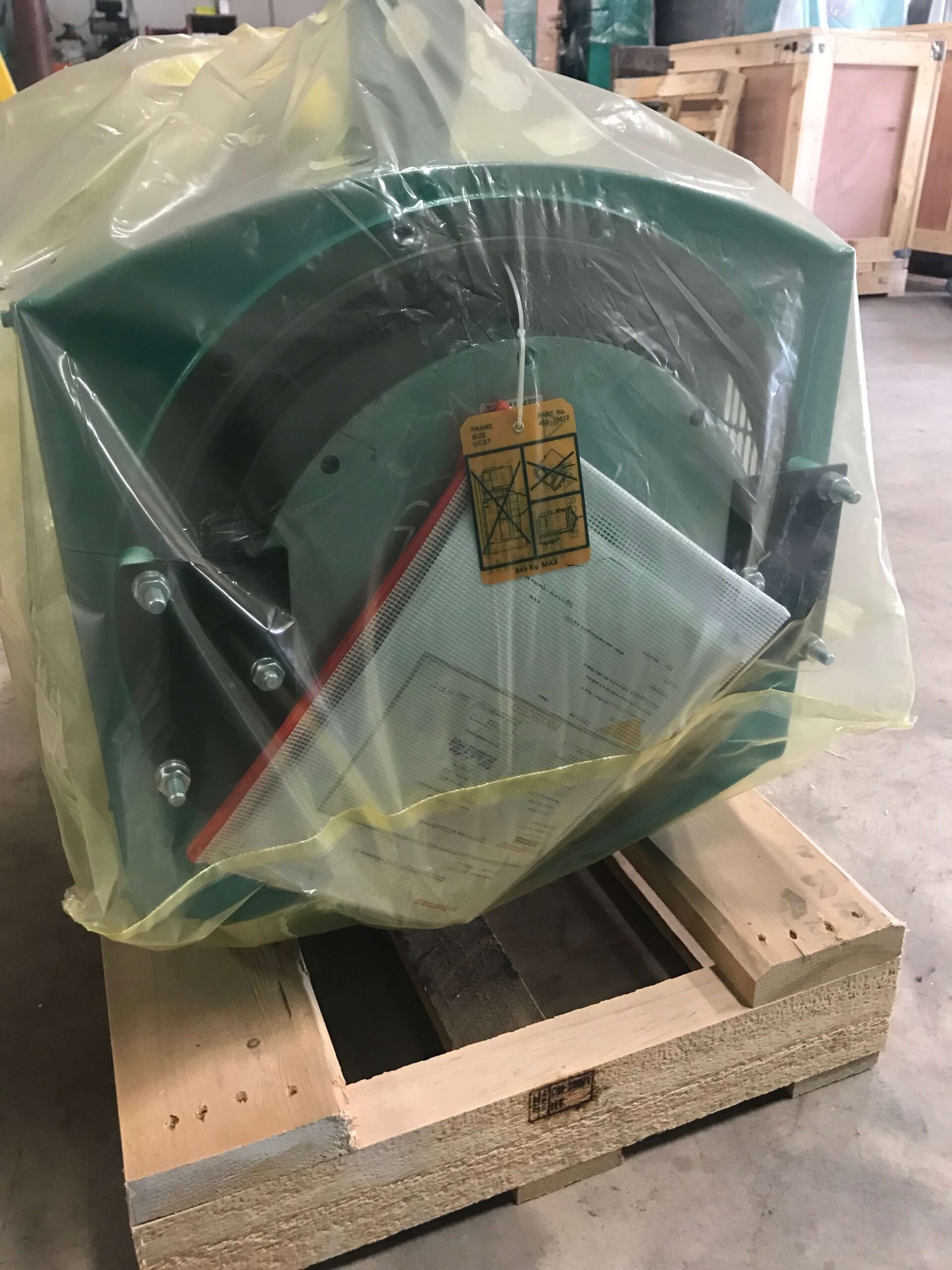

New 144kW Stamford Alternator UCI274F1| P/N: 0200-3237-44


  • New
  • Stamford
  • Cummins P/N: 0200-3237-44

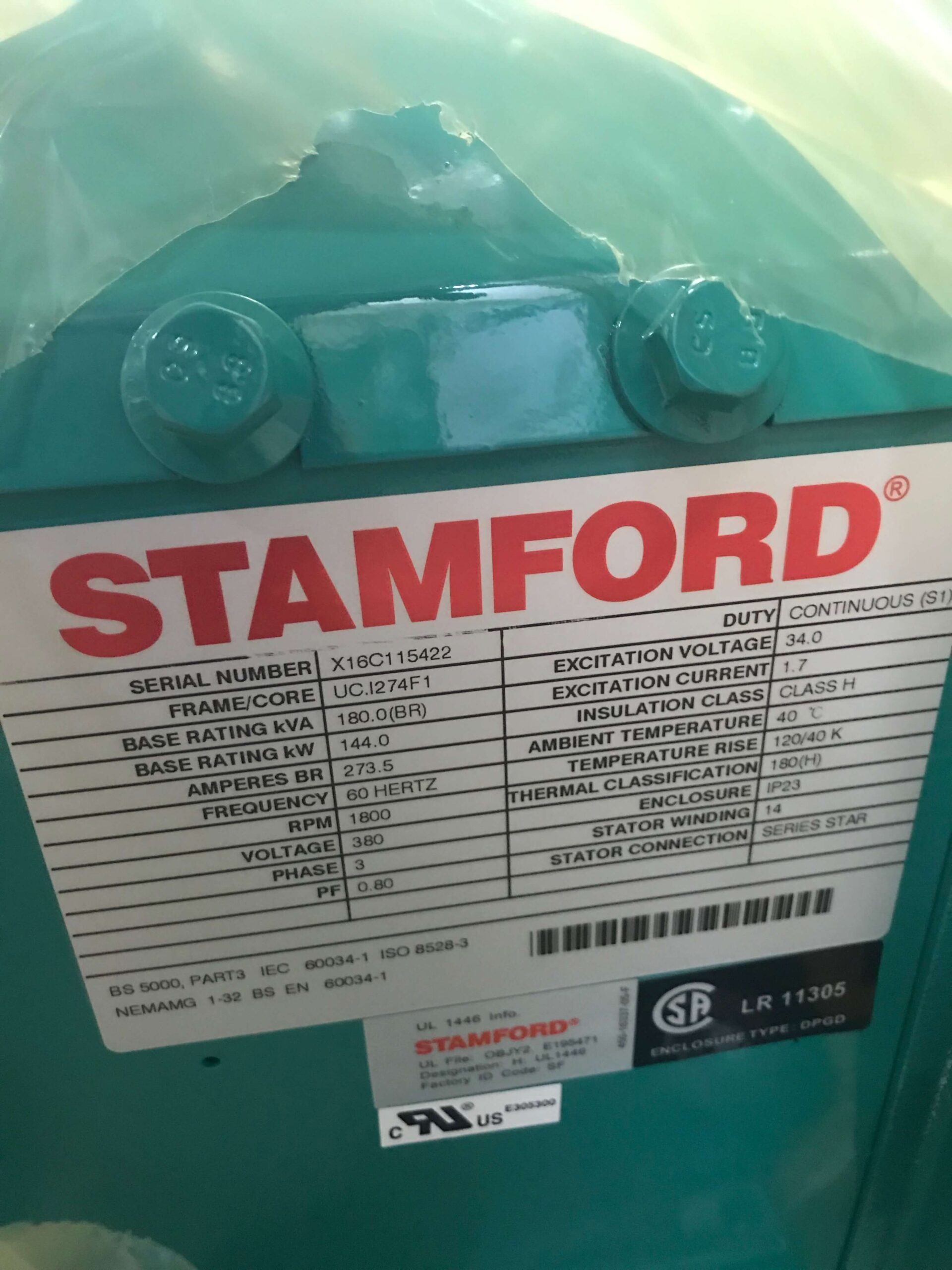

  • Base Rating: 144kW (180kVA)
  • Model: UCI274F1
  • 273.5 Amps
  • 60Hz
  • 1800 RPM
  • 208V or 380V (Commonly used in Brazil or Panama)
  • 3 Phase
  • PF: 0.8
  • Duty: Continuous(S1)
  • Excitation Voltage: 34.0
  • Excitation Current: 1.7
  • Insulation Class: Class H
  • Ambient Temperature: 40 C
  • Temperature Rise: 120/40 K
  • Thermal Classification: 180(H)
  • Enclosure: IP23
  • Stator Winding: 14
  • Stator Connection: Series Star
  • 12 Hole Bell Housing – SAE 2
  • 8 Hole Flywheel – SAE 11 1/2
