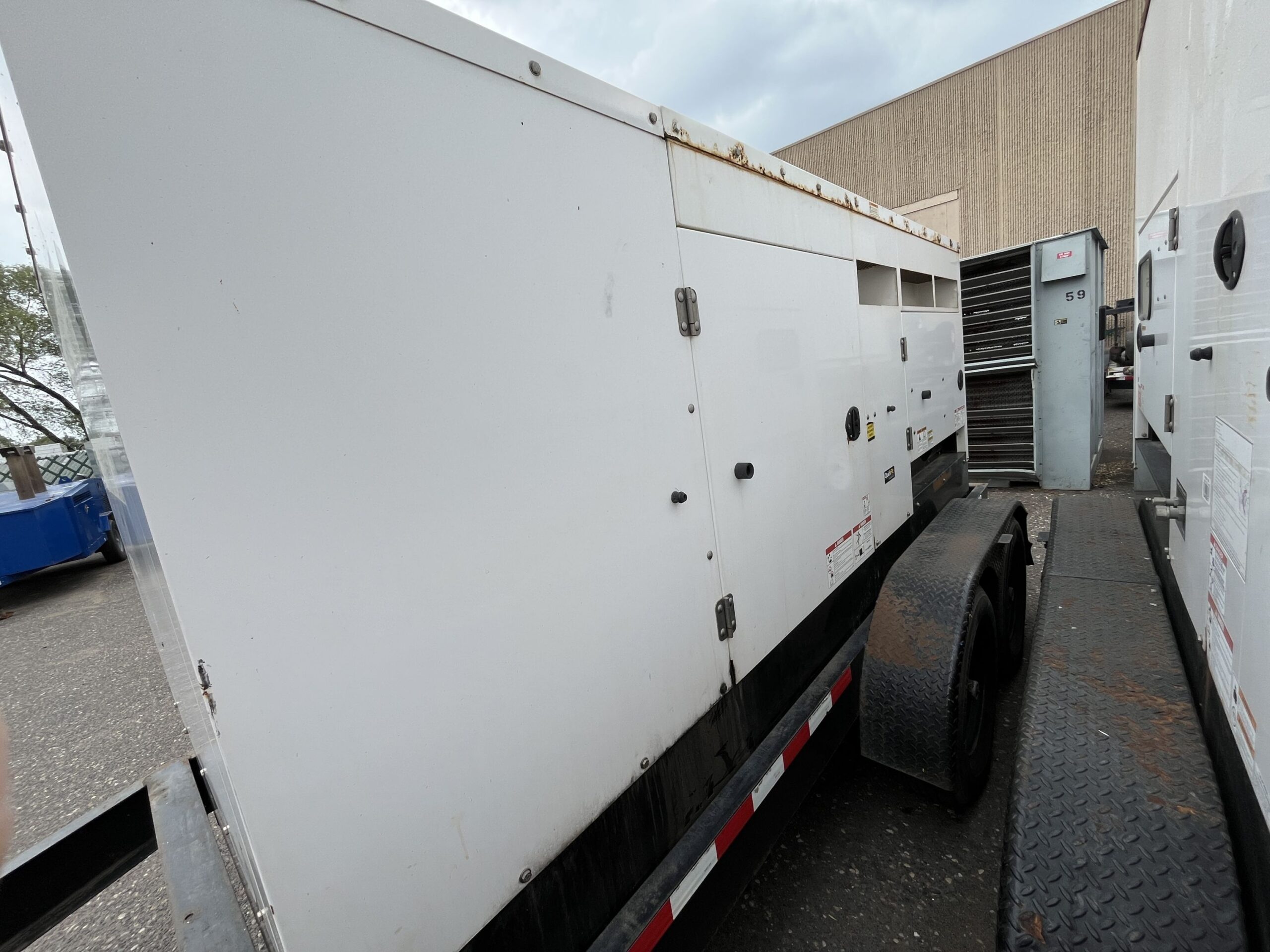

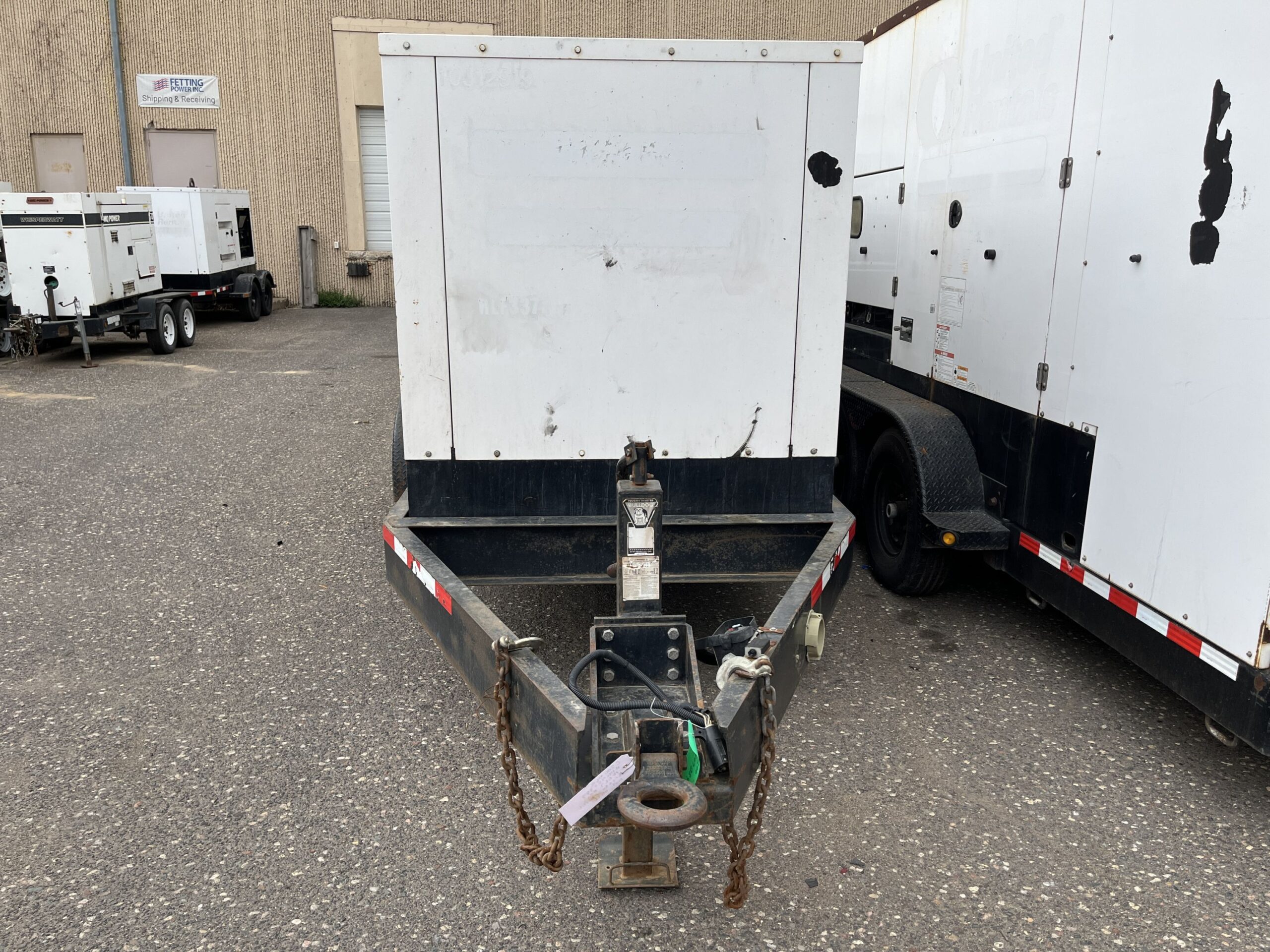

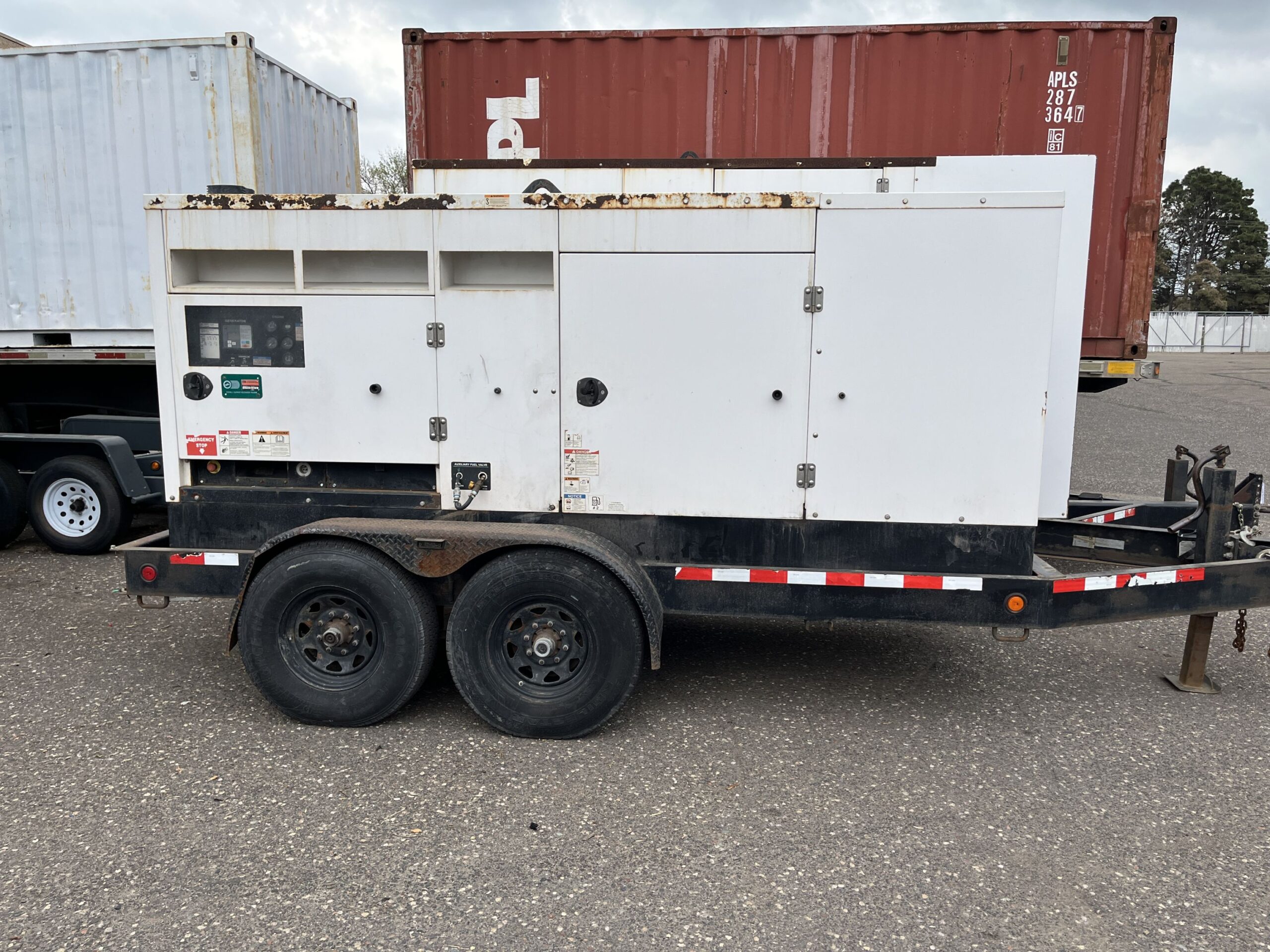

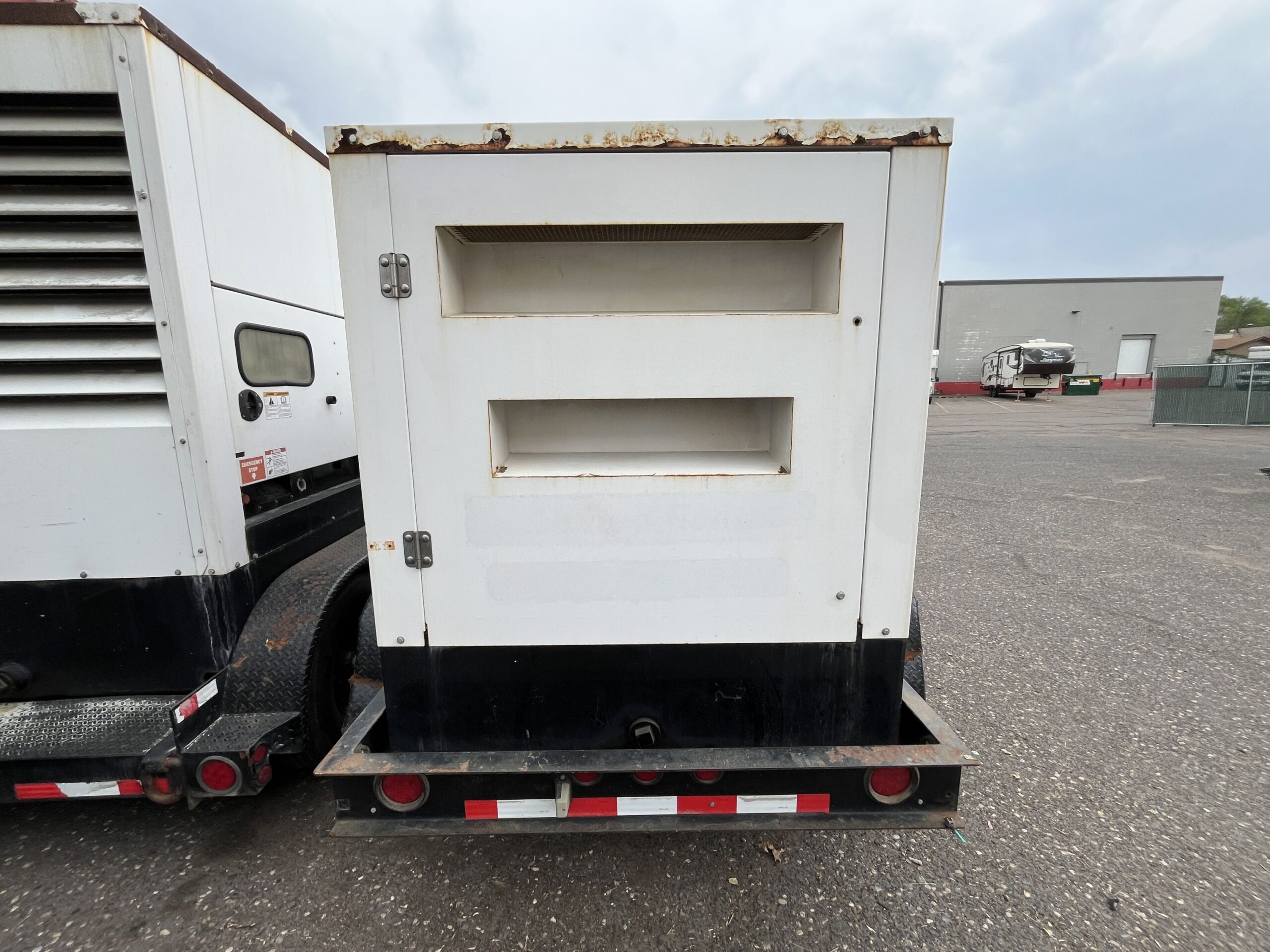

200kw Cummins C200D6R Spec. D Mobile Diesel Generator – S/N: H140728997
- Used
- Cummins
- Model: C200D6R – 1411181 Spec. D
- 200kW
- S/N: H140728997
- 2014
- Hours:

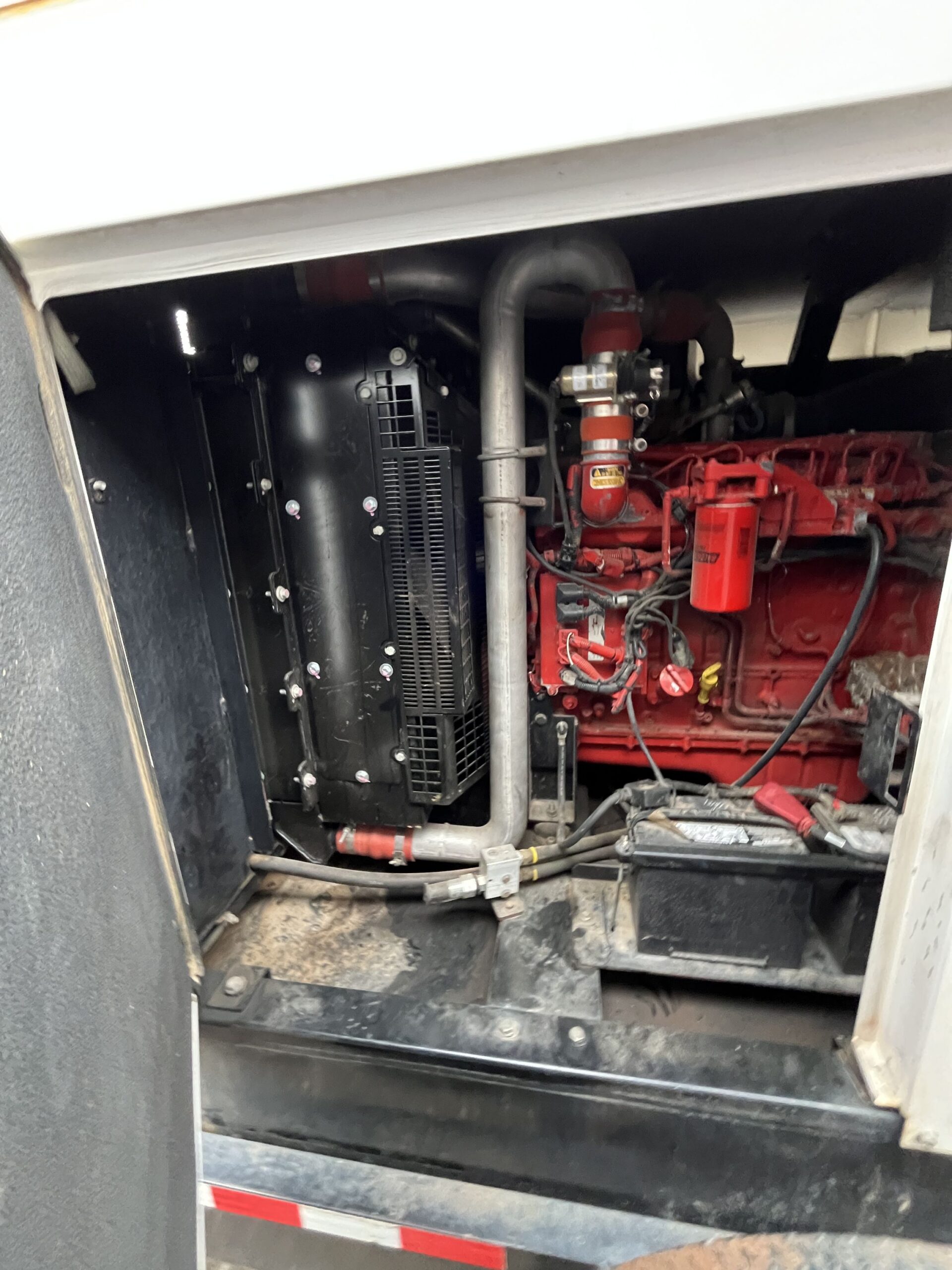

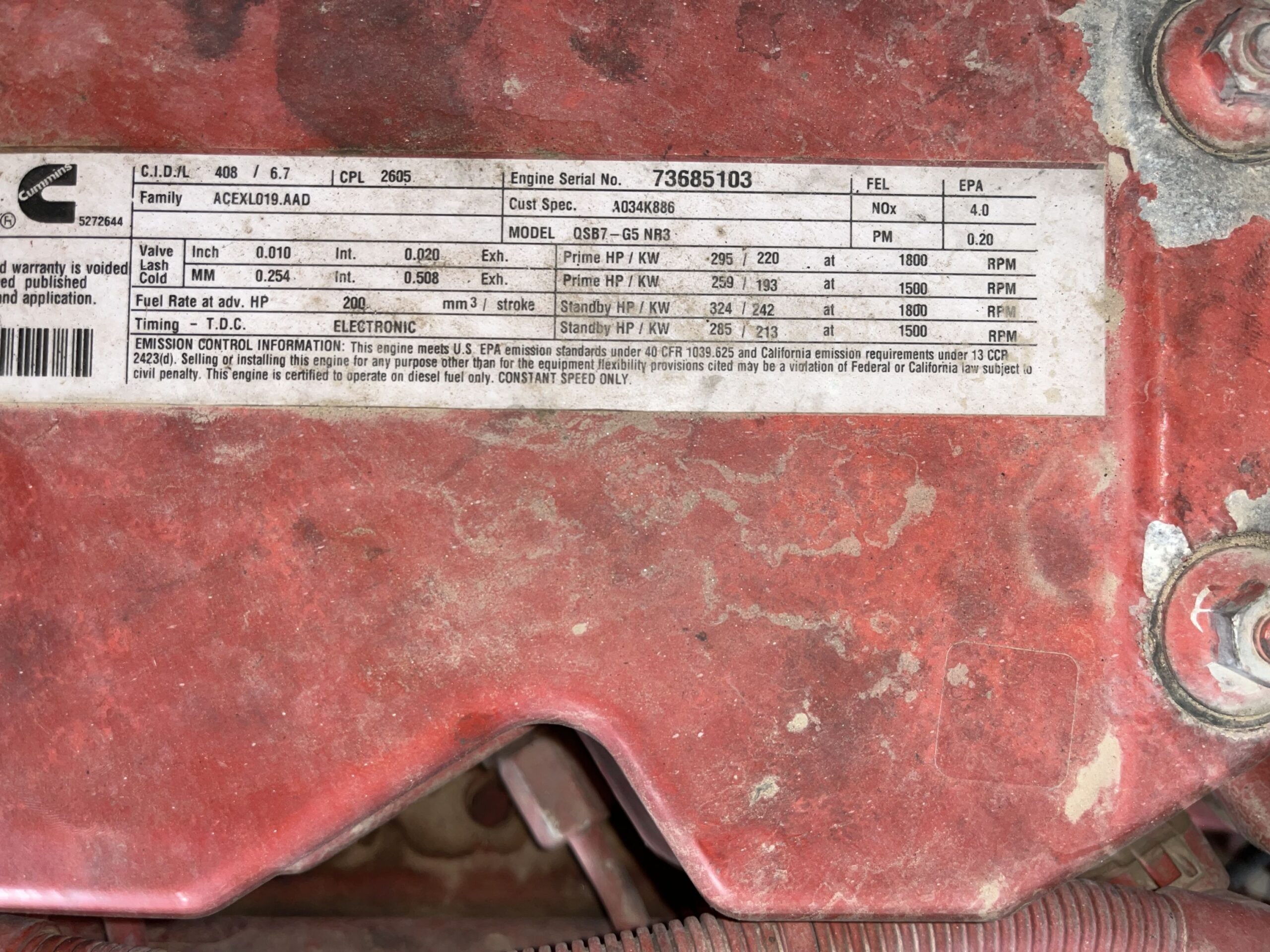

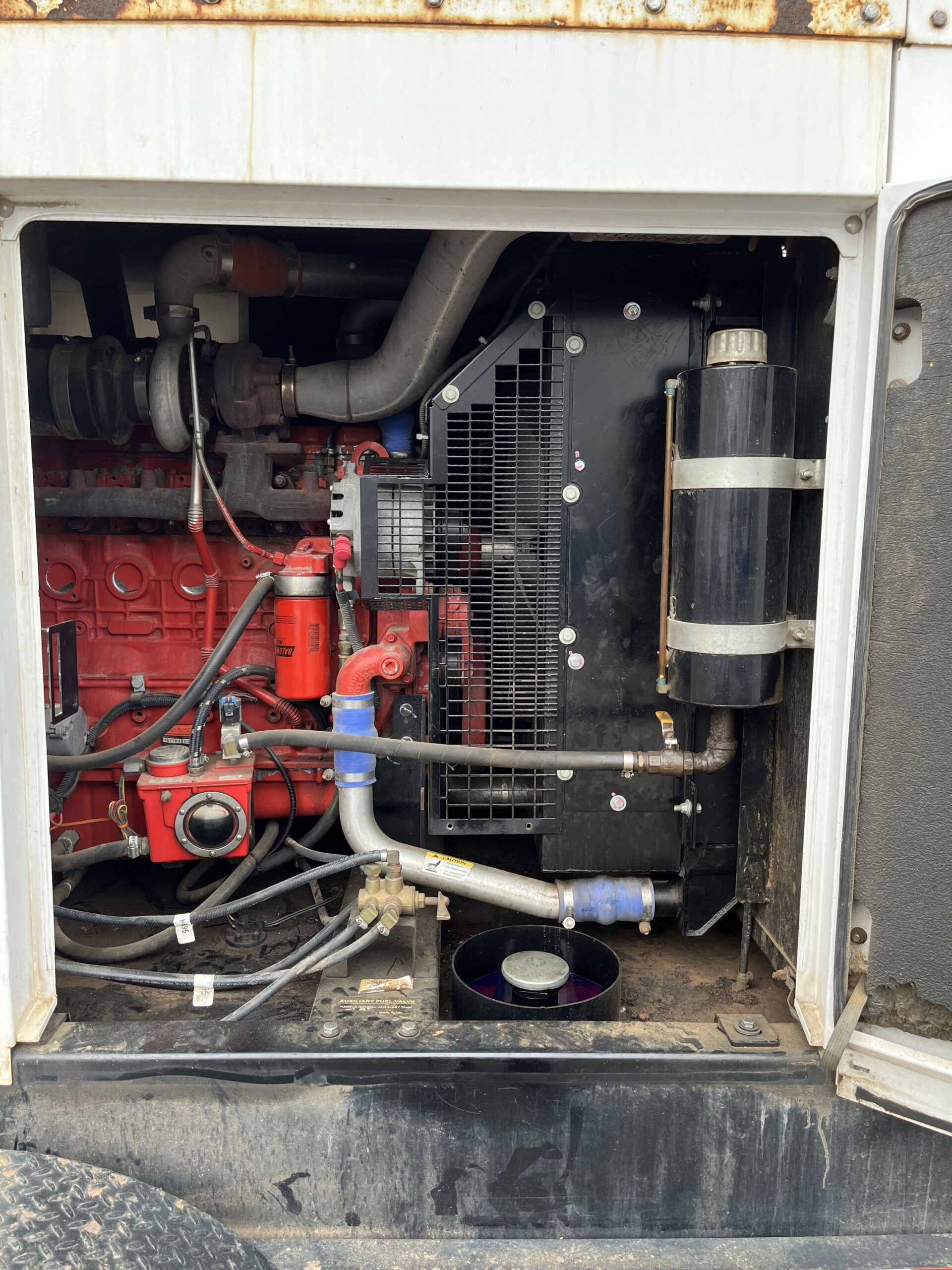

- Engine: QSB7-G5 (A034K886) – S/N: 73685103

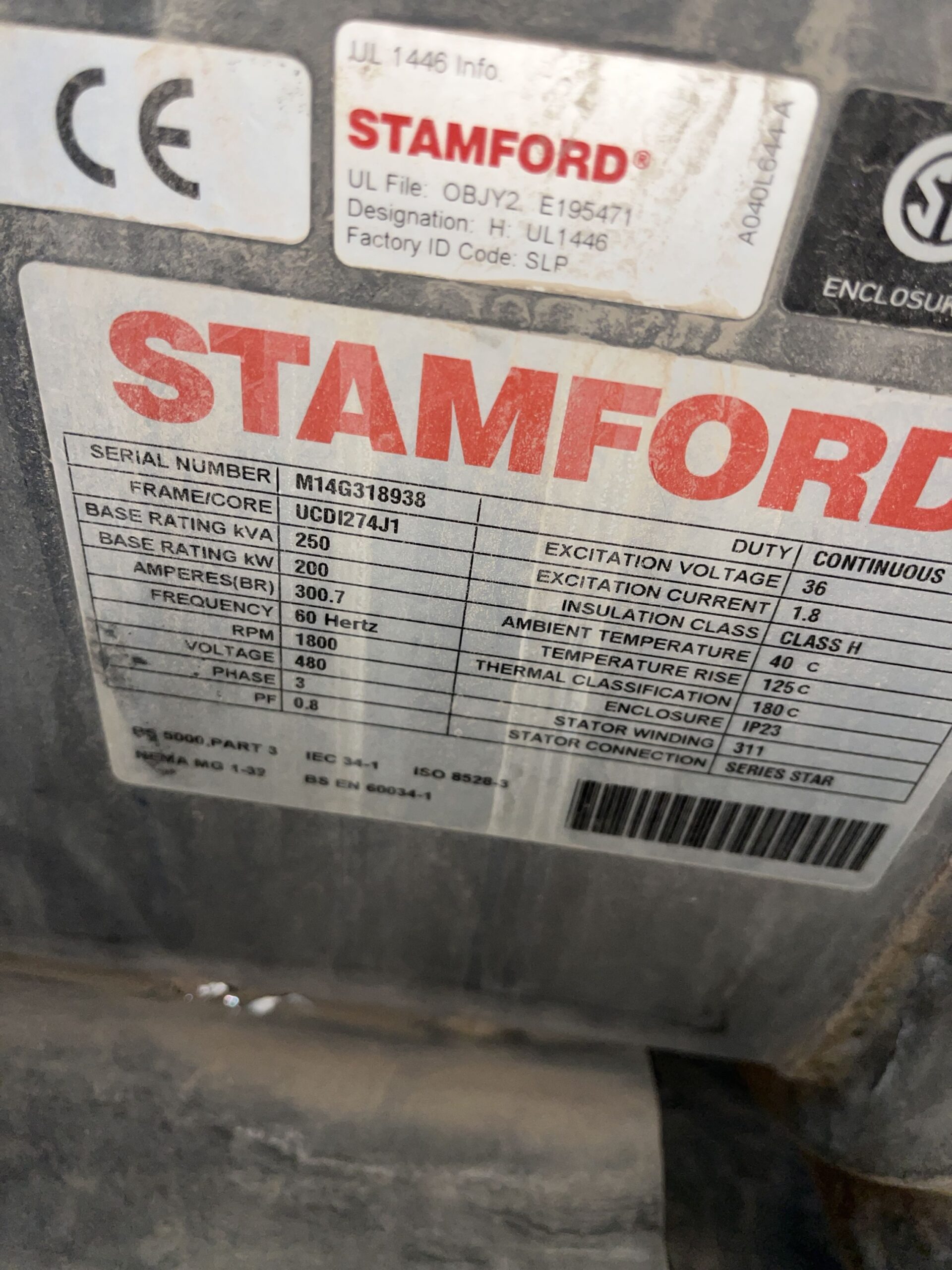

- Alternator: UCDI274J1 – S/N: M14G318938
- 1800 RPM
- 60Hz
- Battery: 12VDC

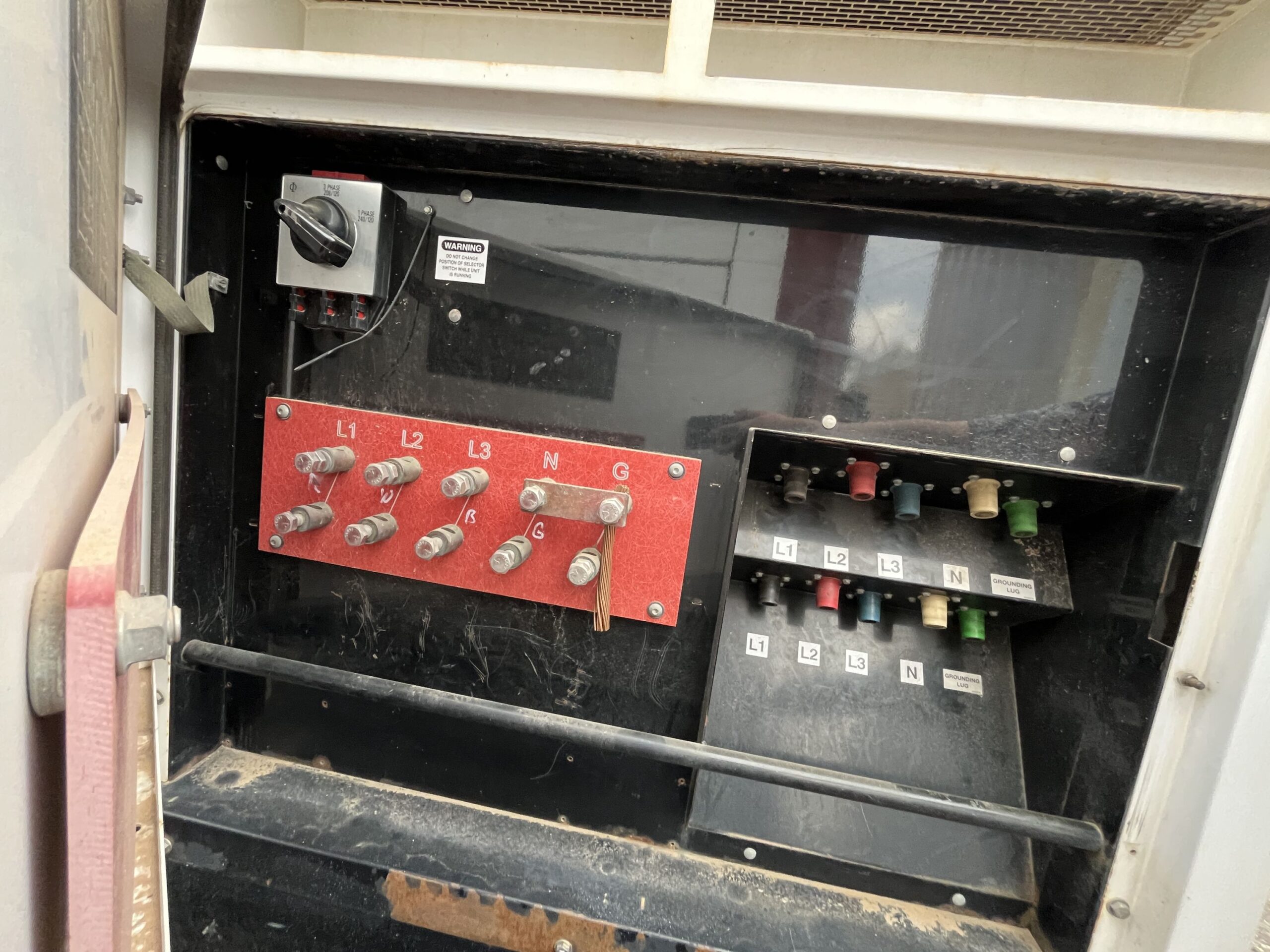

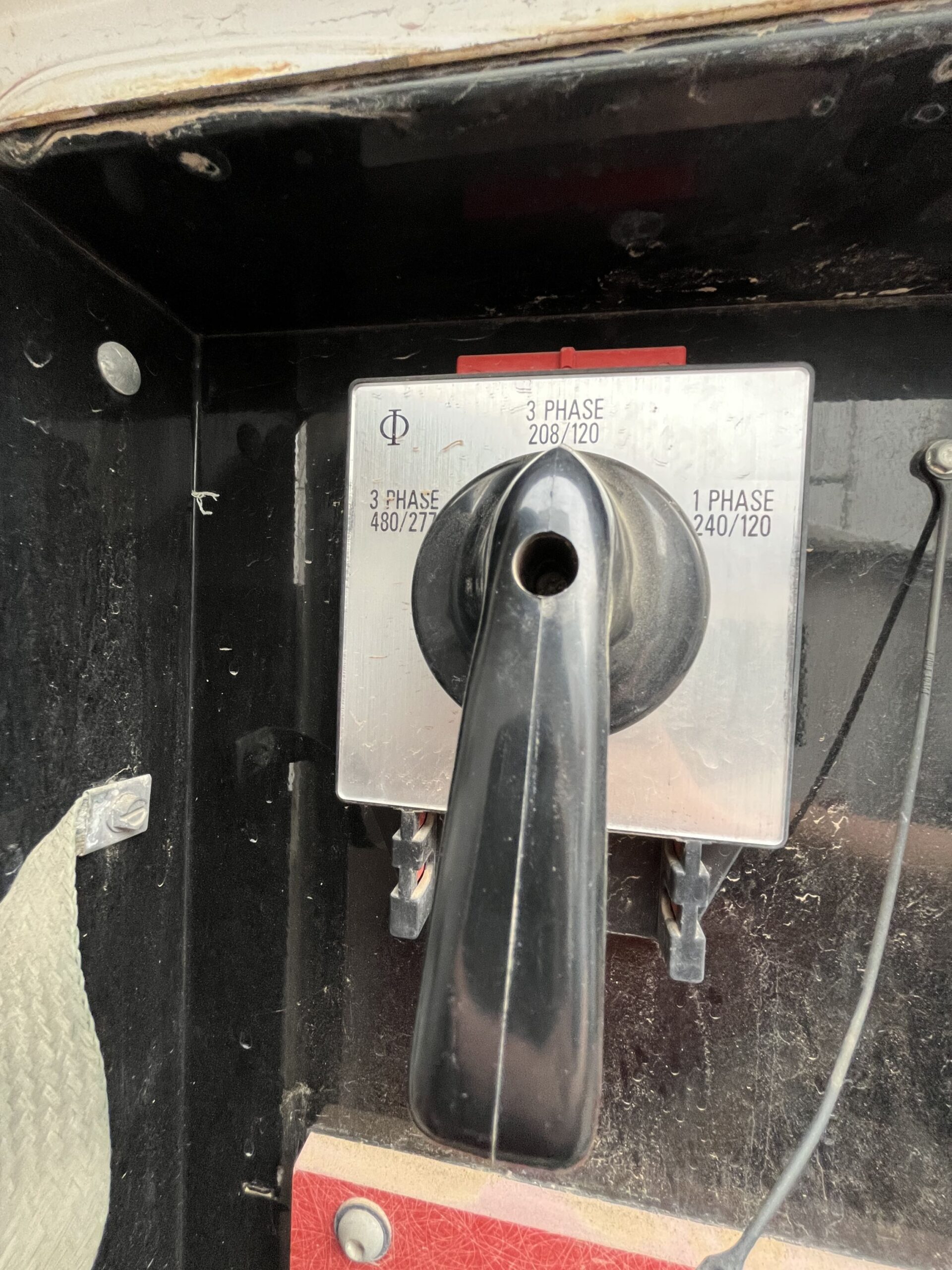

- 3 Position Voltage Selector Switch: 3 Ph 480/277, 3 Ph 208/120, 1 Ph 240/120

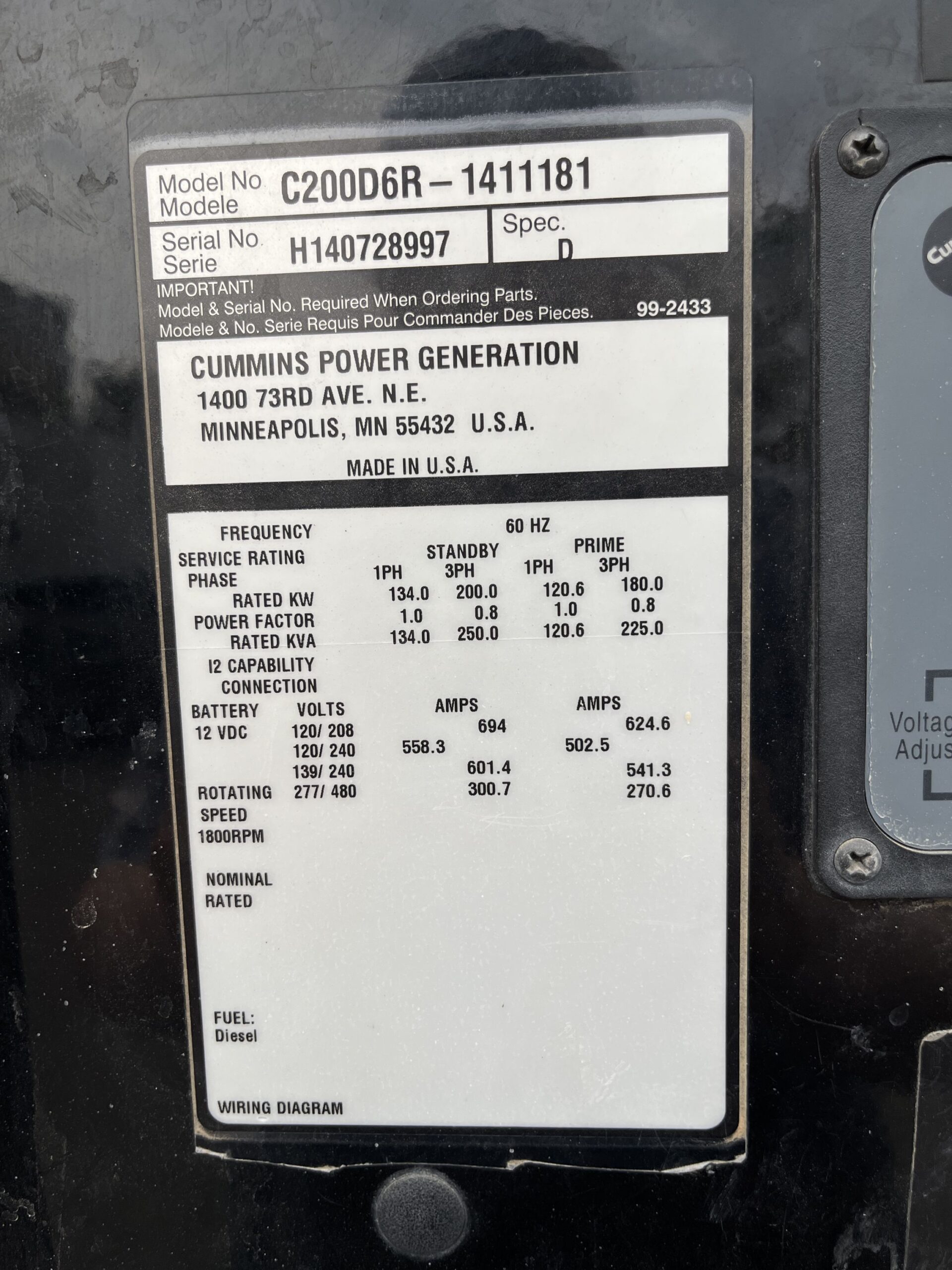

| Service Rating | Standby | Standby | Prime | Prime |
| Phase | 1PH | 3PH | 1PH | 3PH |
| Rated kW | 134 | 200 | 120.6 | 180 |
| Power Factor | 1 | 0.8 | 1 | 0.8 |
| Rated kVa | 134 | 250 | 120.6 | 225 |
| | | | |
| Volts | Amps | Amps | Amps | Amps |
| 120/208 | – | 694 | – | 624.6 |
| 120/240 | 558.3 | – | 502.5 | – |
| 139/240 | – | 601.4 | – | 541.3 |
| 277/480 | – | 300.7 | – | 270.6 |
