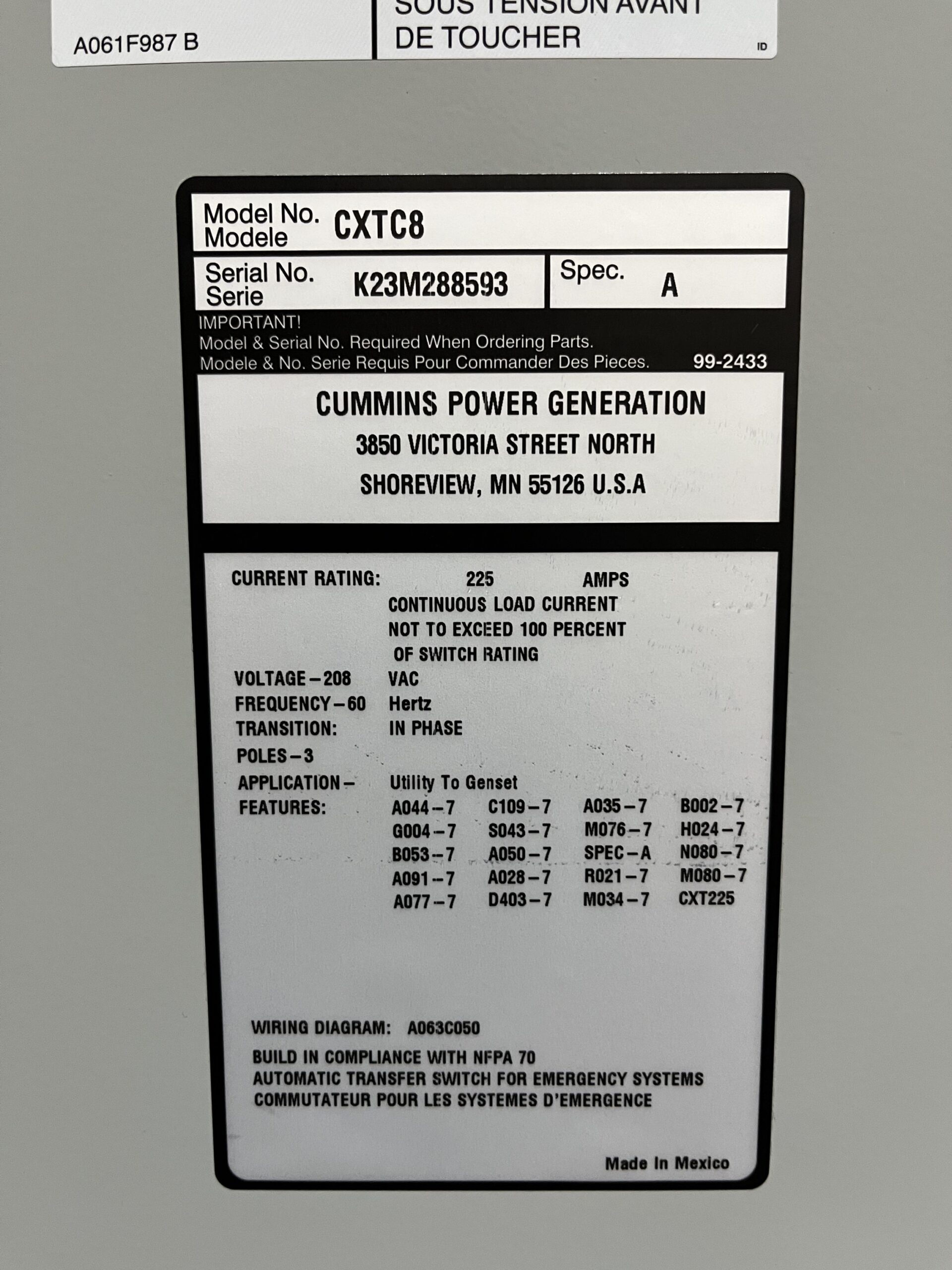

225A 208VAC Cummins CXTC8 Spec. A Automatic Transfer Switch – S/N: K23M288593

  • New
  • Cummins
  • 2023
  • CXTC8 Spec. A Automatic Transfer Switch
  • S/N: K23M288593
  • 225 Amps
  • 208 VAC
  • 60 Hz
  • Transition: In Phase
  • 3 Poles
  • Application: Utility to Genset

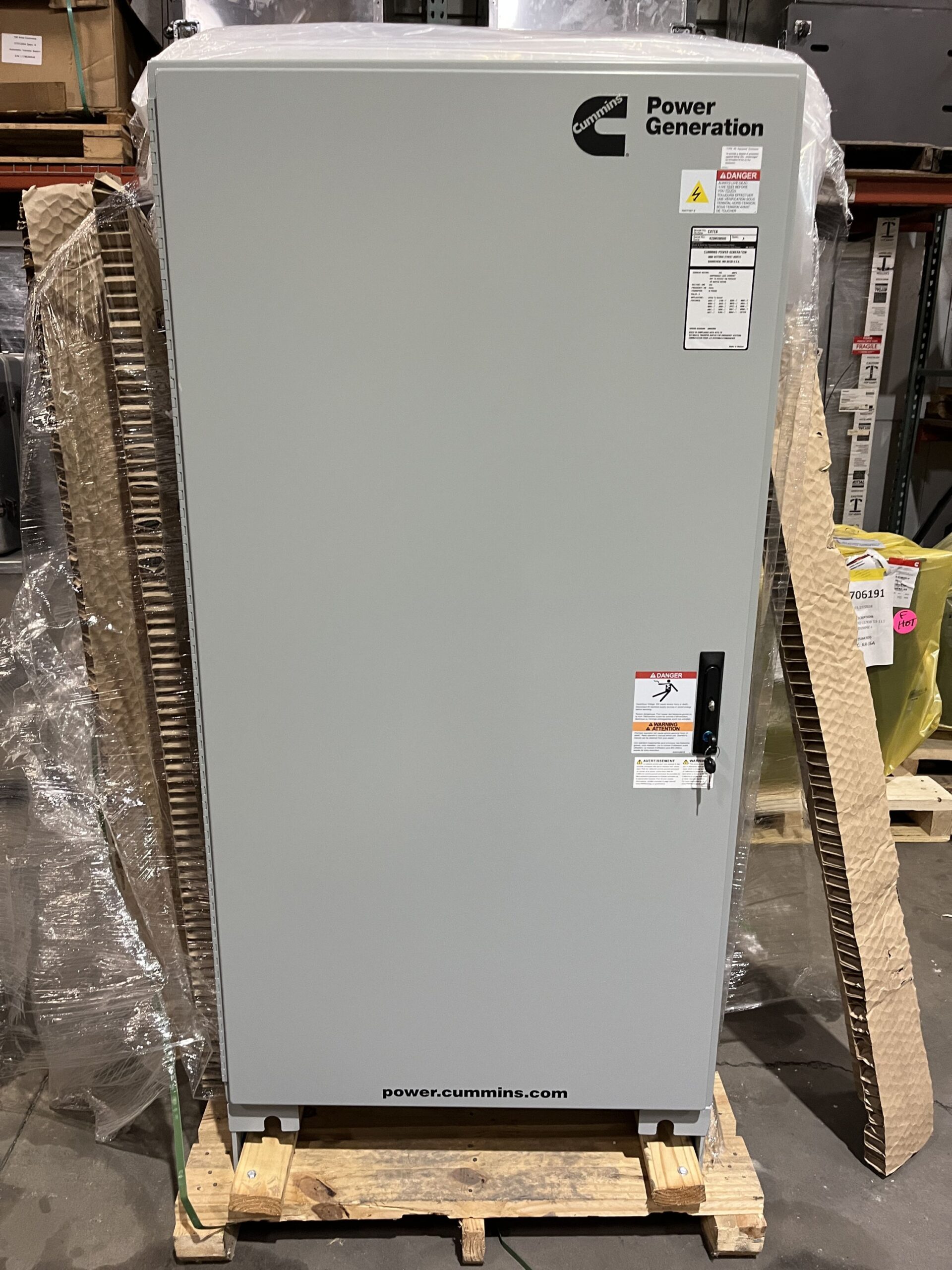

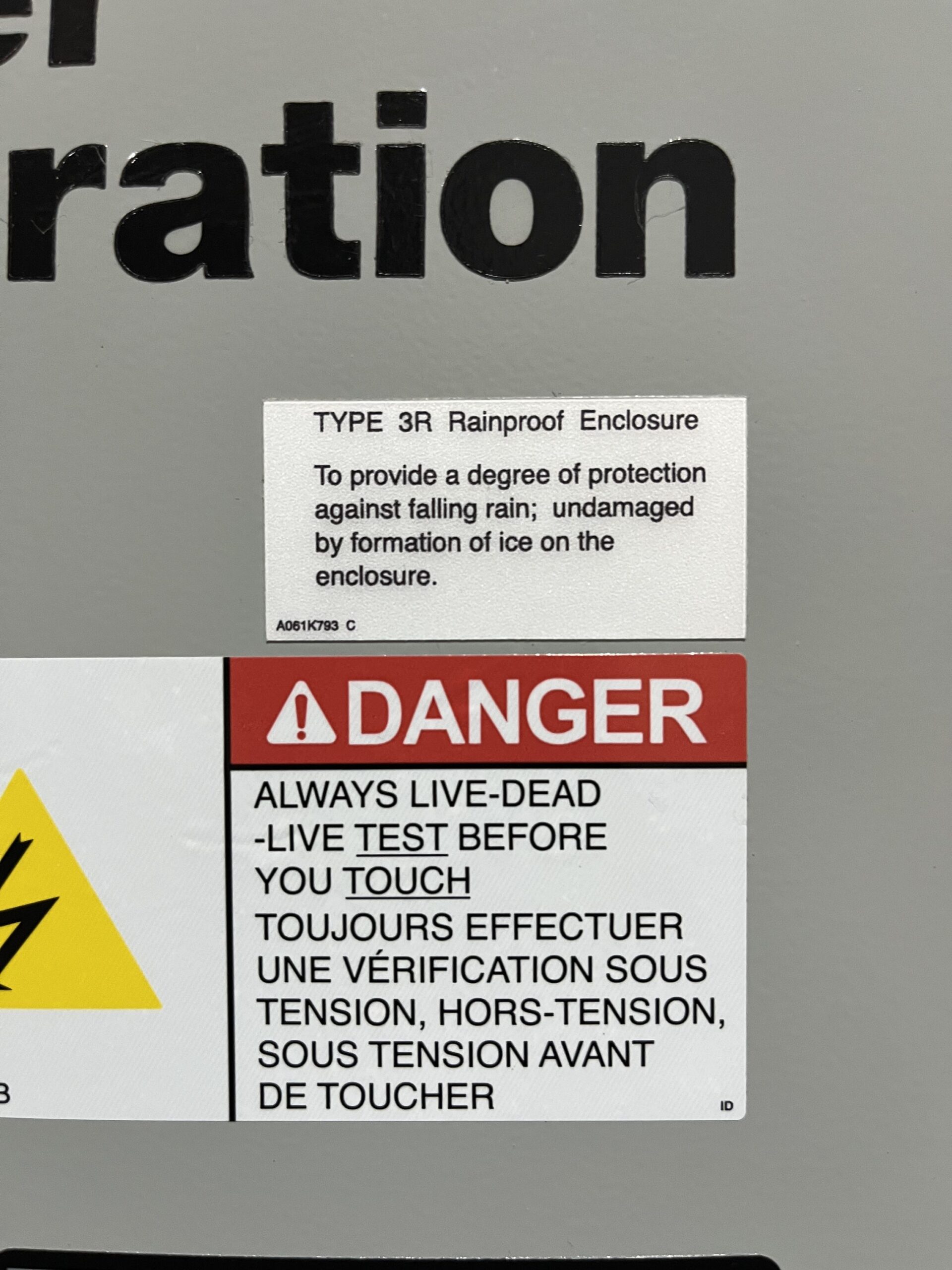

  • Type 3R Rainproof Enclosure

Feature Codes:

  • A044-7: Frequency – 60Hz

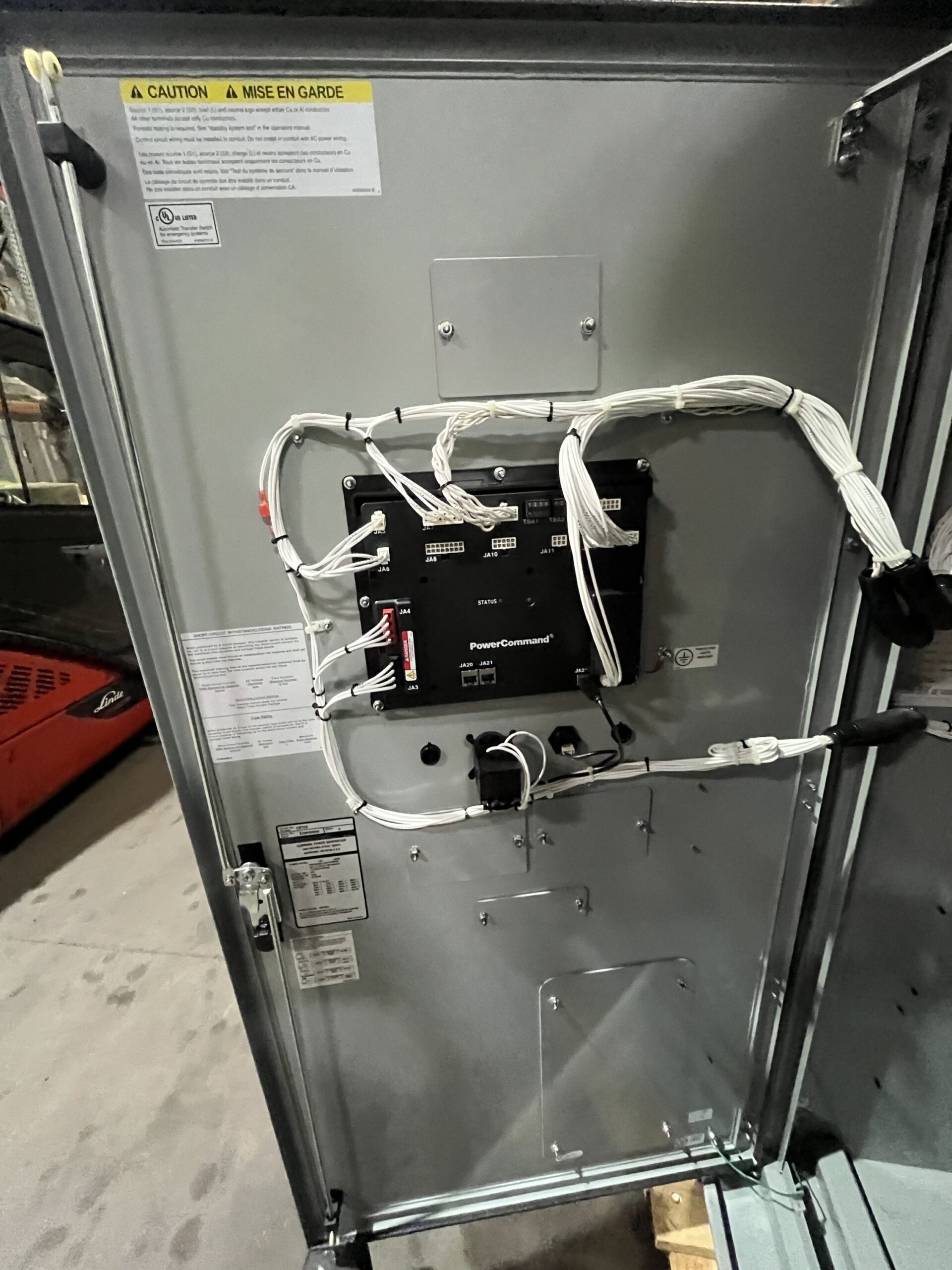

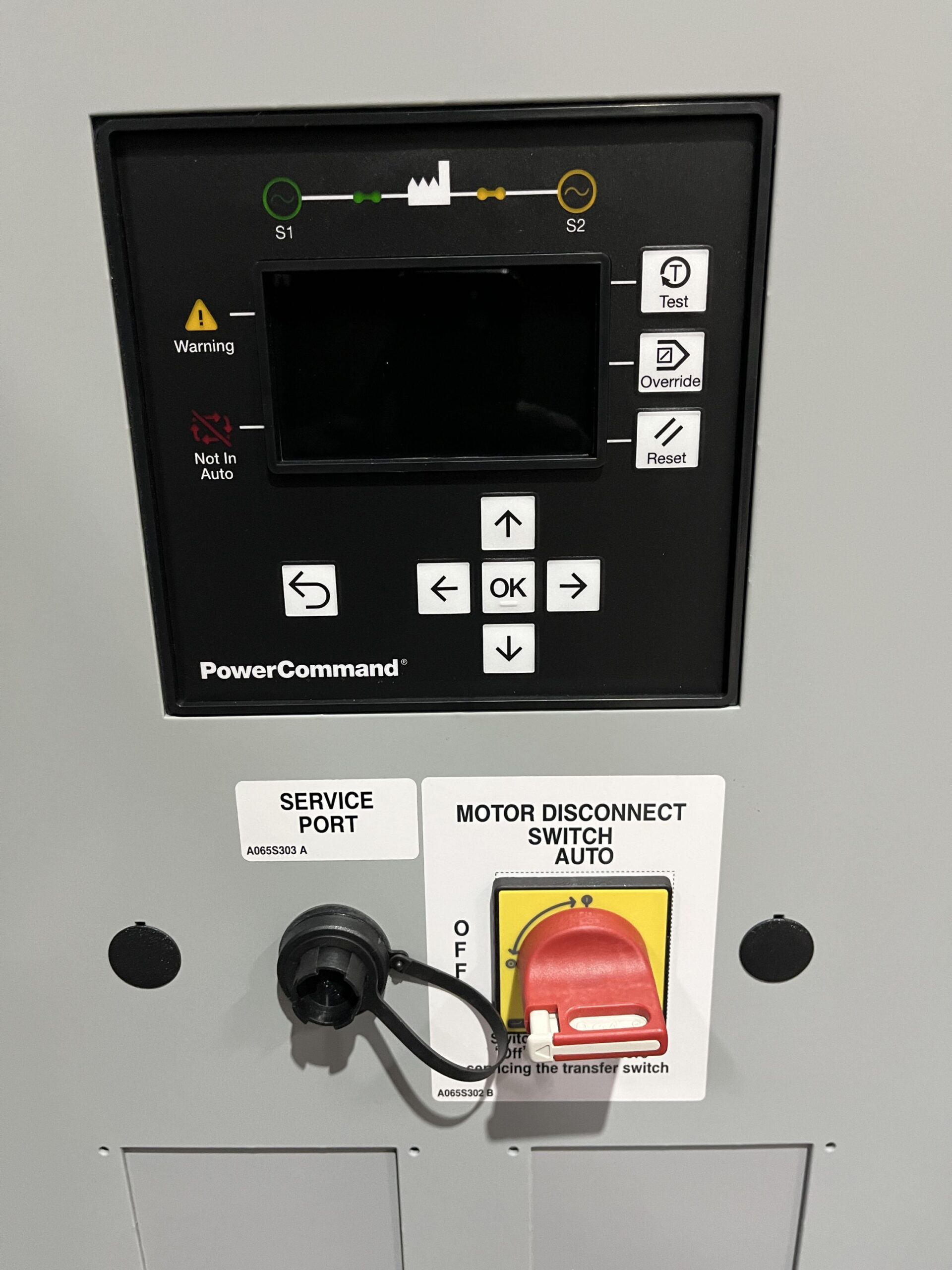

  • C109-7: PC80 Control
  • A035-7: Appl – Utility to Genset
  • B002-7: Cabinet – Type 3R
  • G004-7: Transfer Switch Wty – 2 Yr Comprehensive (Expired)
  • S043-7: Listing – UL

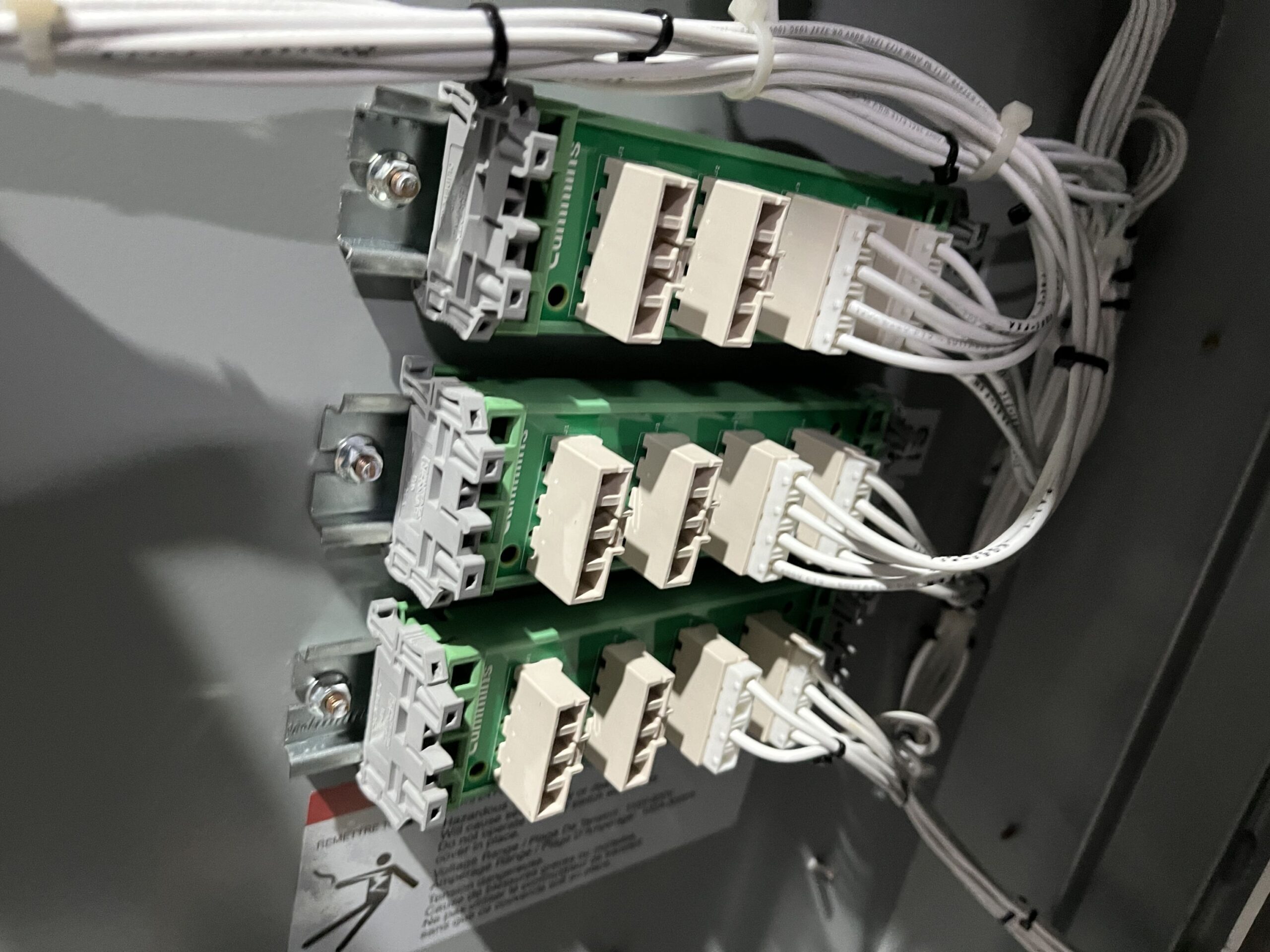

  • M076-7: Standard Customer I/O

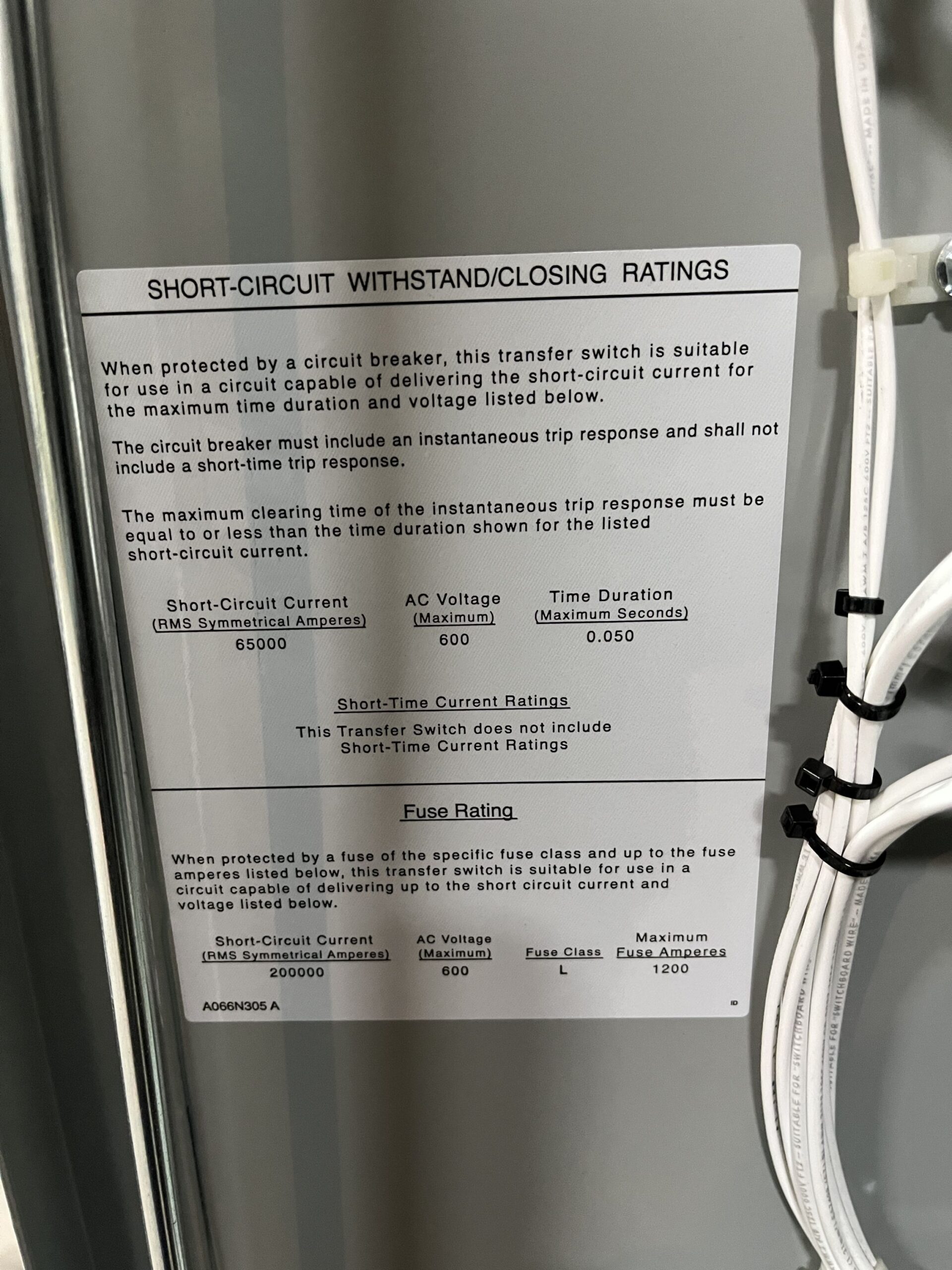

  • H024-7: UL 1008 3 Cycle Withstanding Rating
  • B053-7: Wall Mount Enclosure
  • A050-7: Packing – Wooden Crate (N/A)
  • SPEC-A: Product Revision A

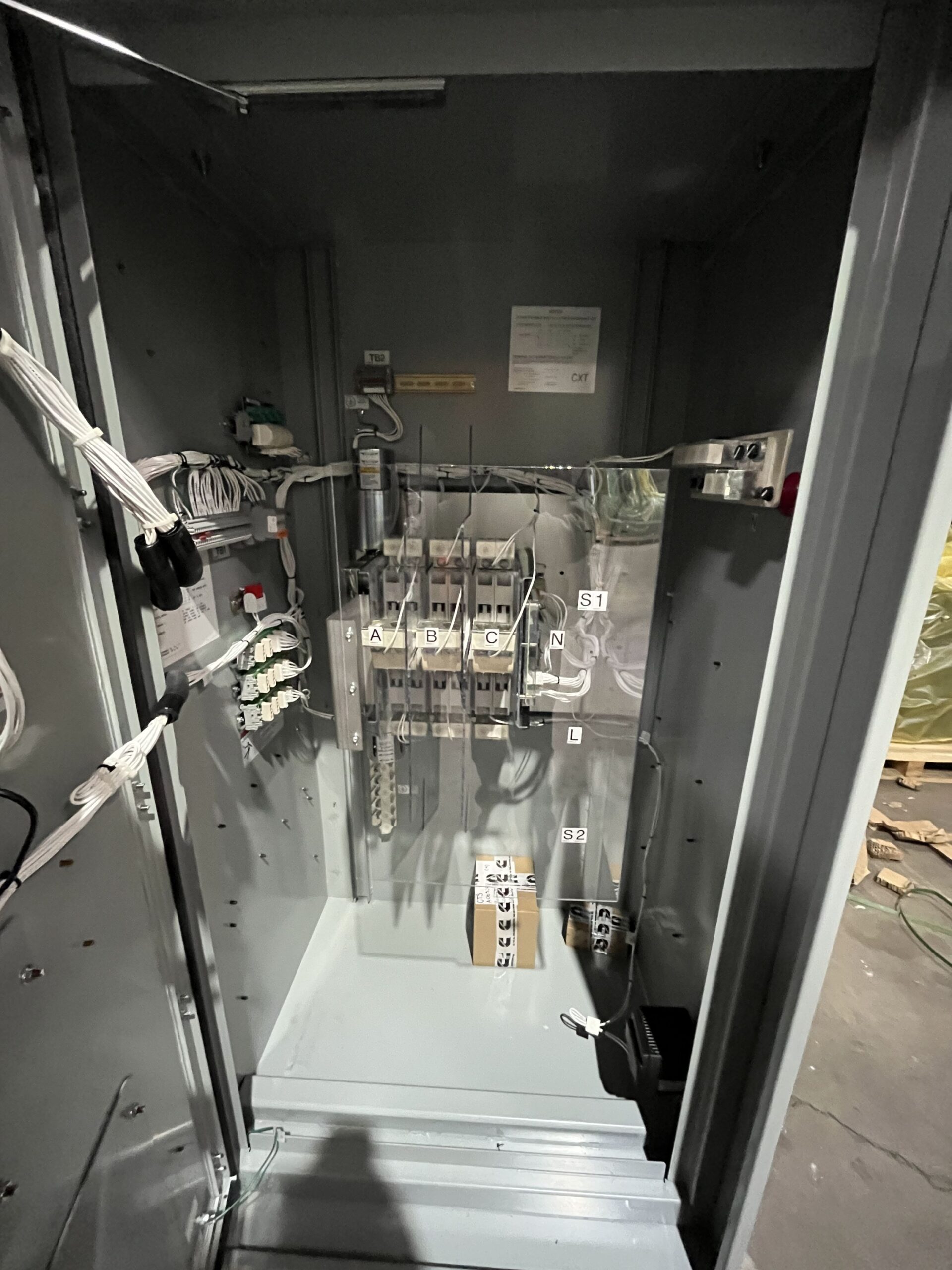

  • N080-7: Cable Lugs – Mechanical, 2-600MCM/Pole
  • A091-7: System – 3 Phase, 4-W
  • A028-7: Poles – 3
  • R021-7: Voltage – 208
  • M080-7: Enclosure Heater
  • A077-7: Transfer Mode – In Phase Transition
  • D403-7: Integrated High Accuracy Power Quality Metering
  • M034-7: Genset Starting Battery – 24VDC
