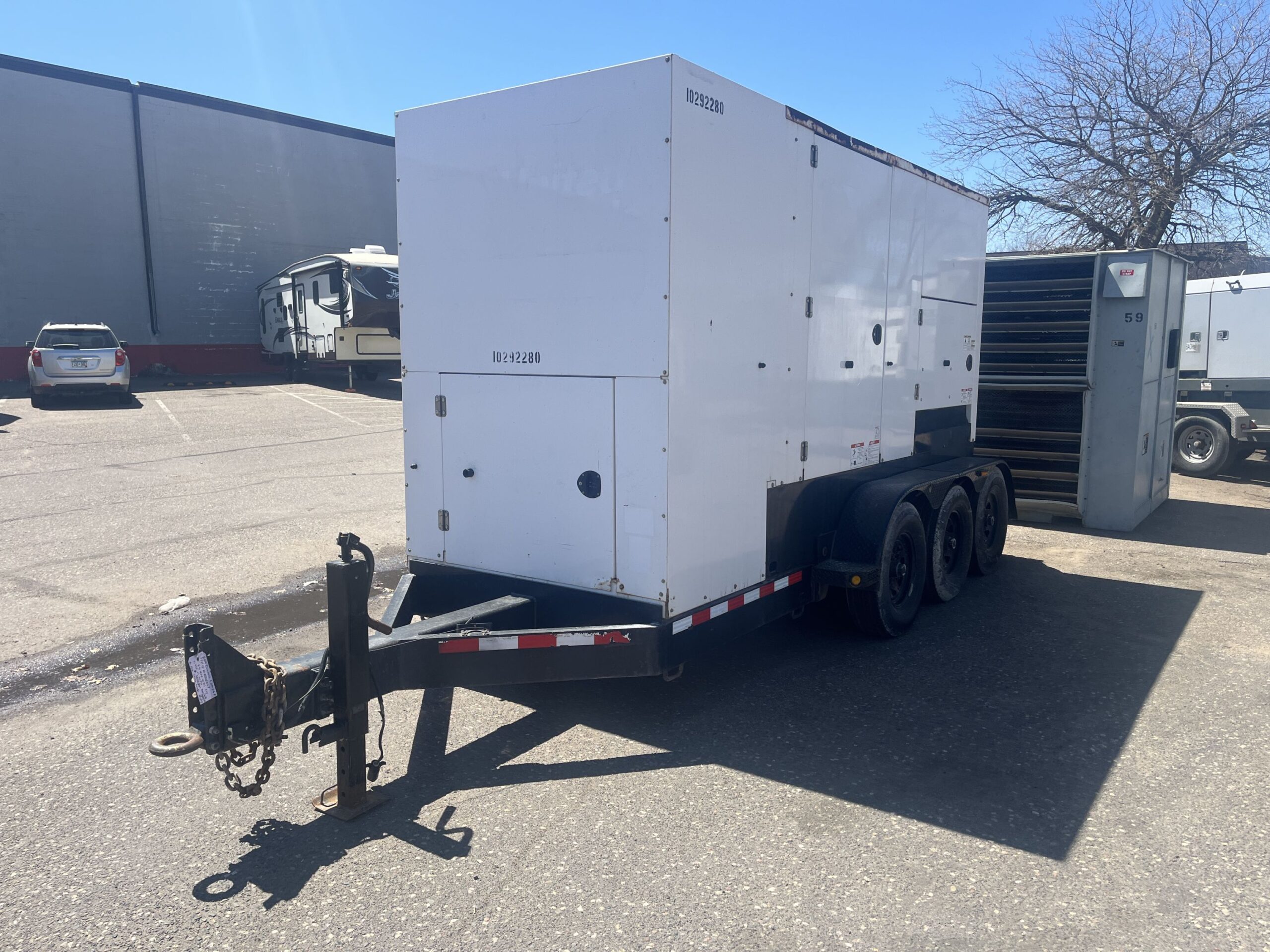

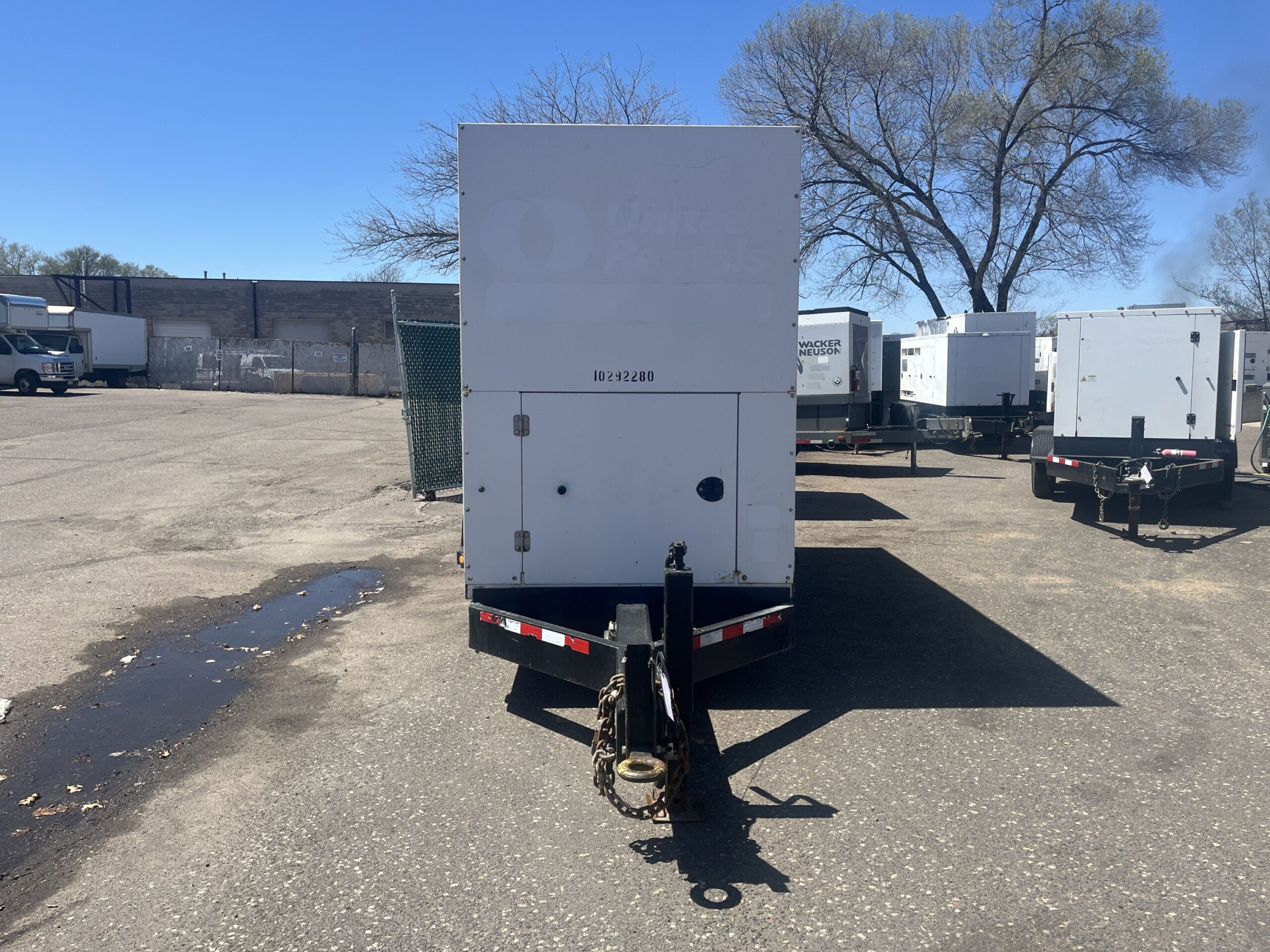

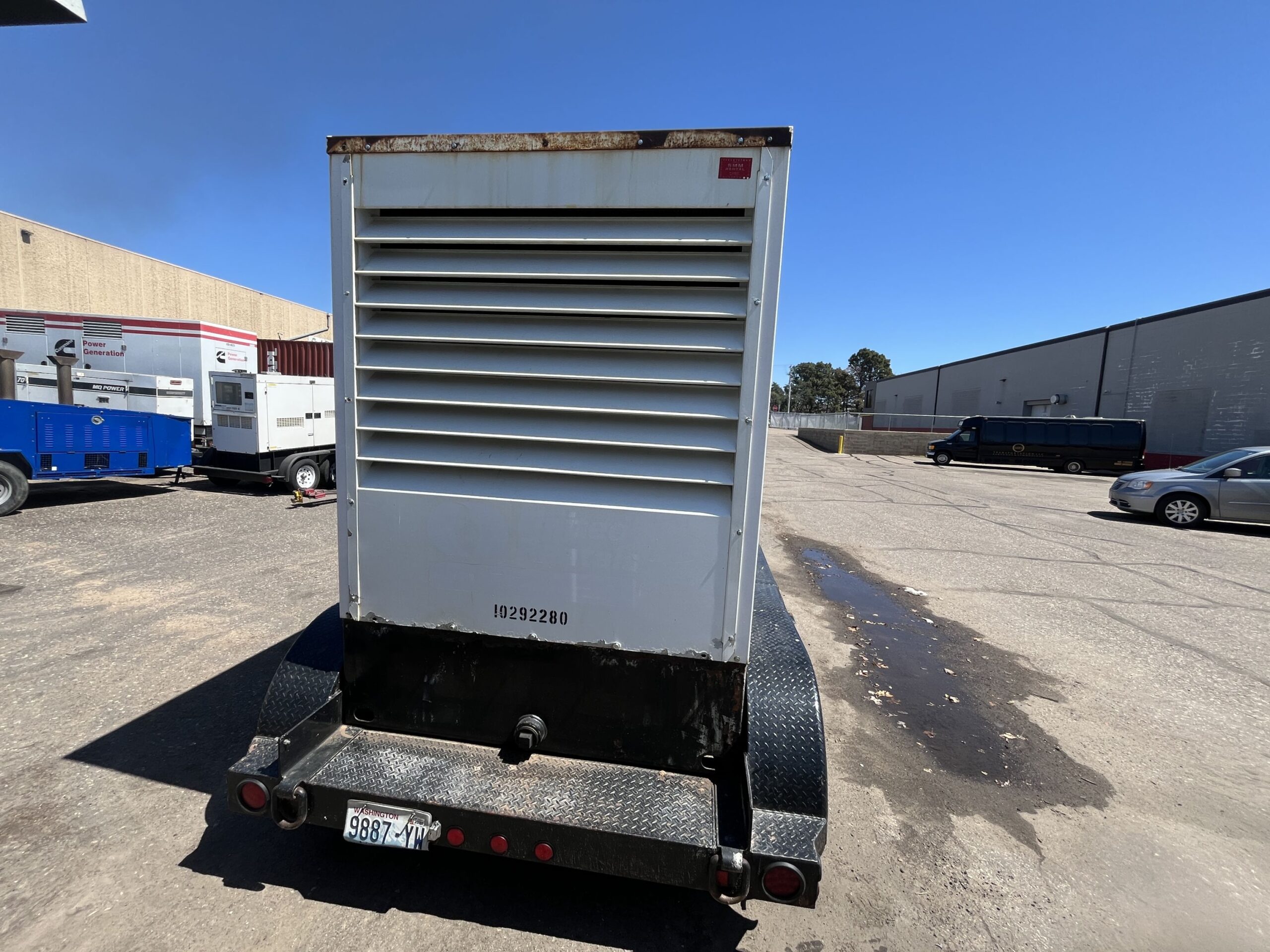

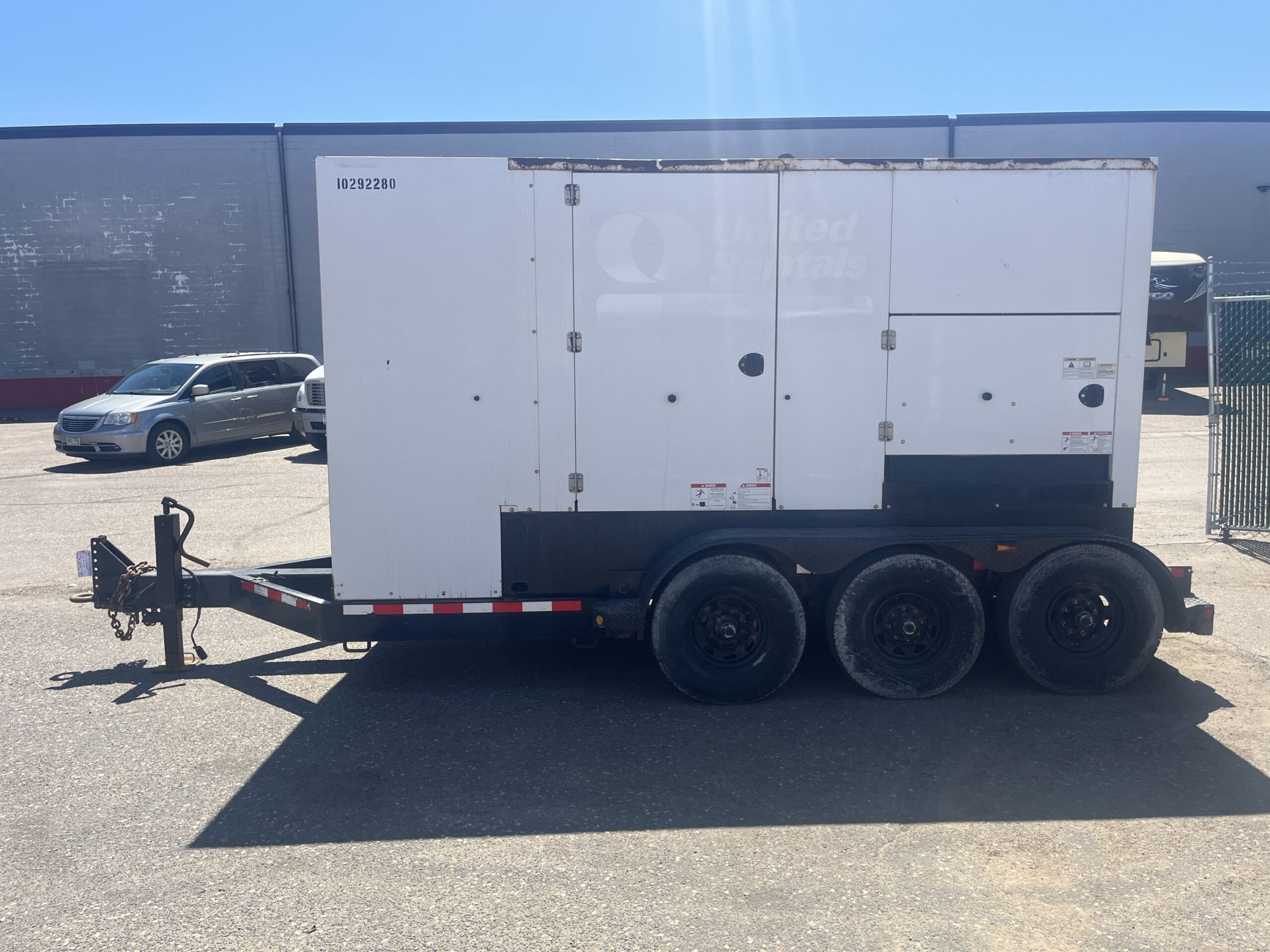

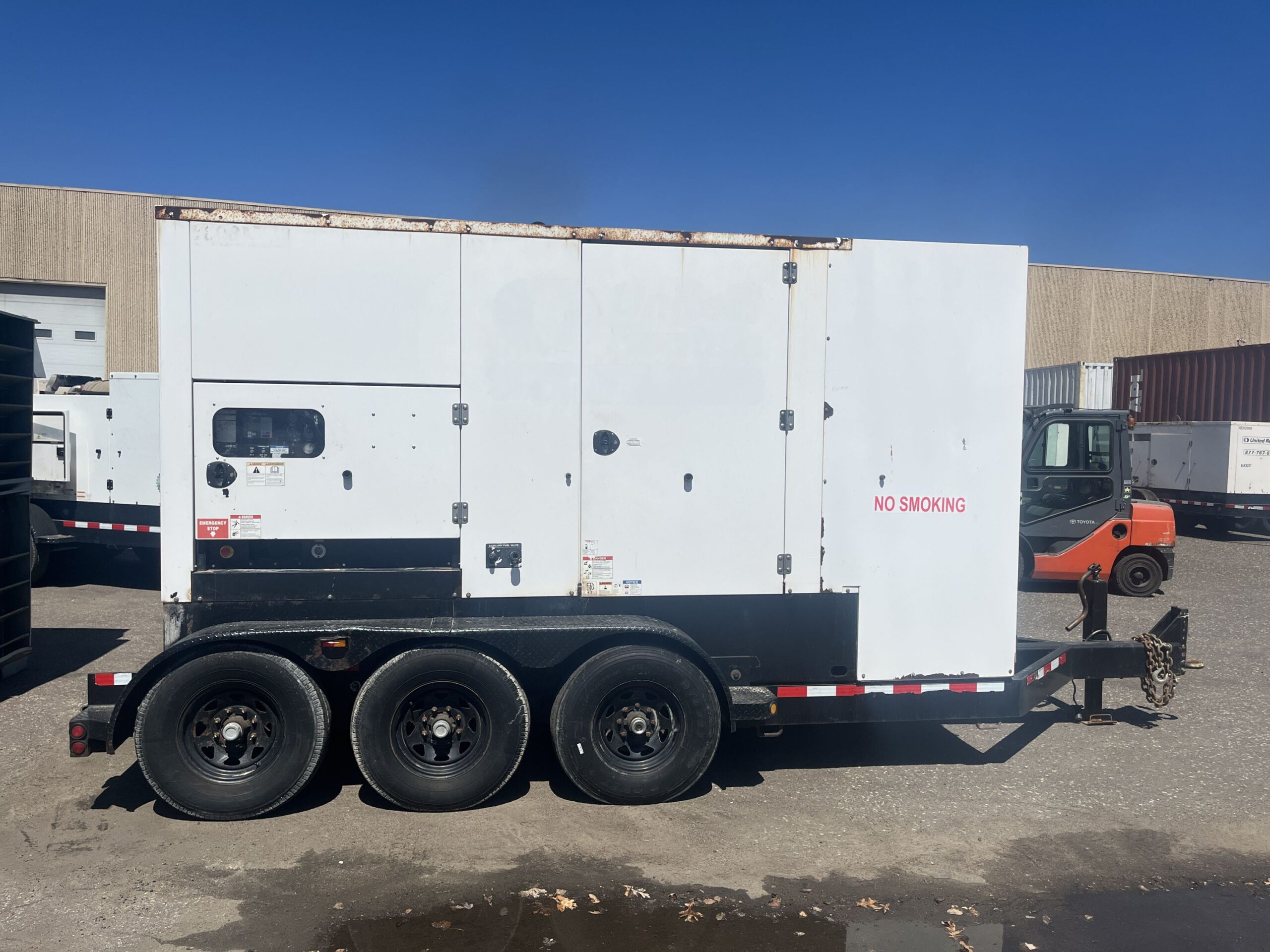

300kw Cummins C300D6R-1400819 Spec. C Mobile Diesel Generator – S/N: F140693137
- Used
- Cummins
- Model: C300D6R – 1400819
- Spec. C
- S/N: F140693137
- 2014
- Hours: 23,905

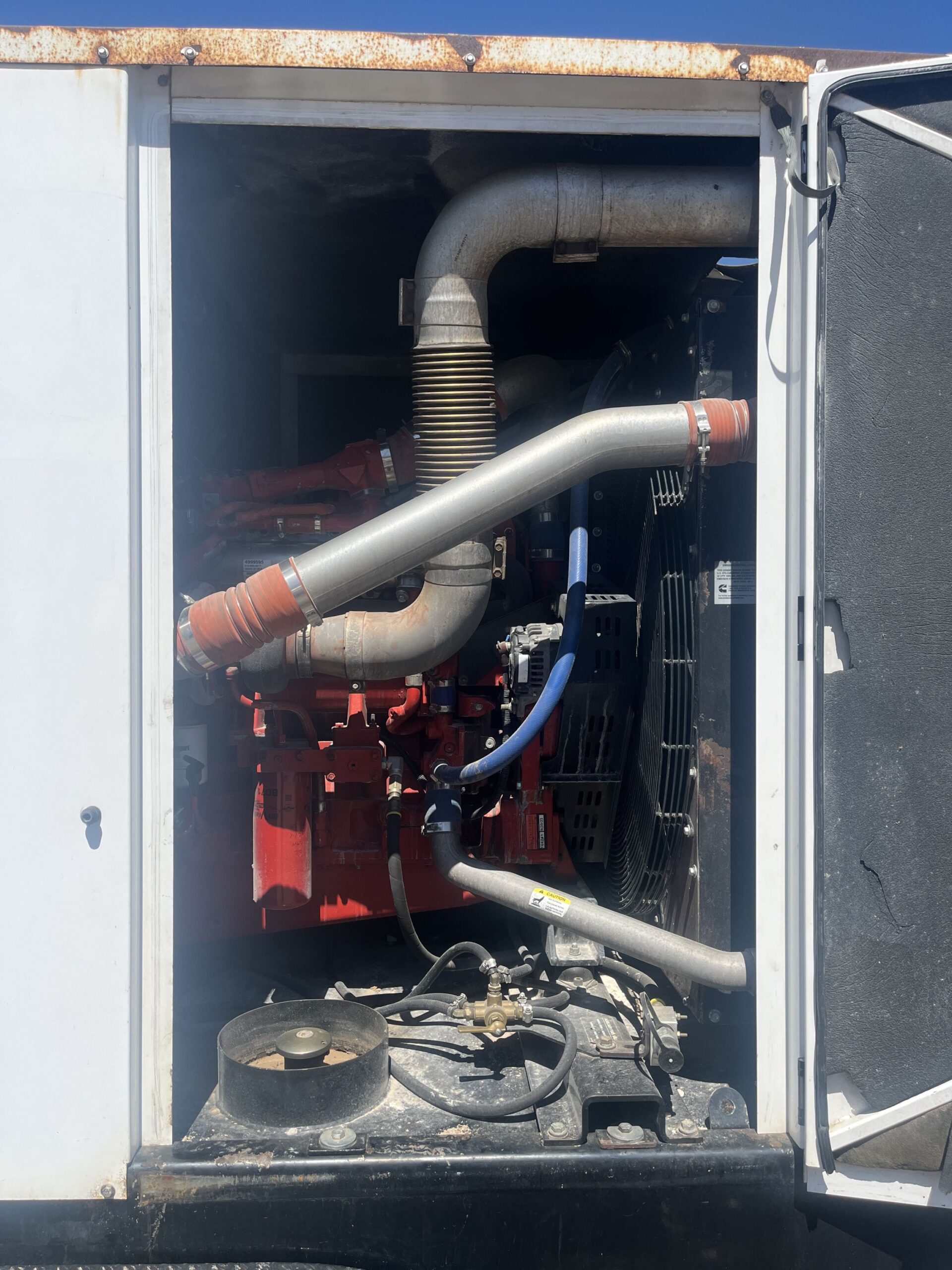

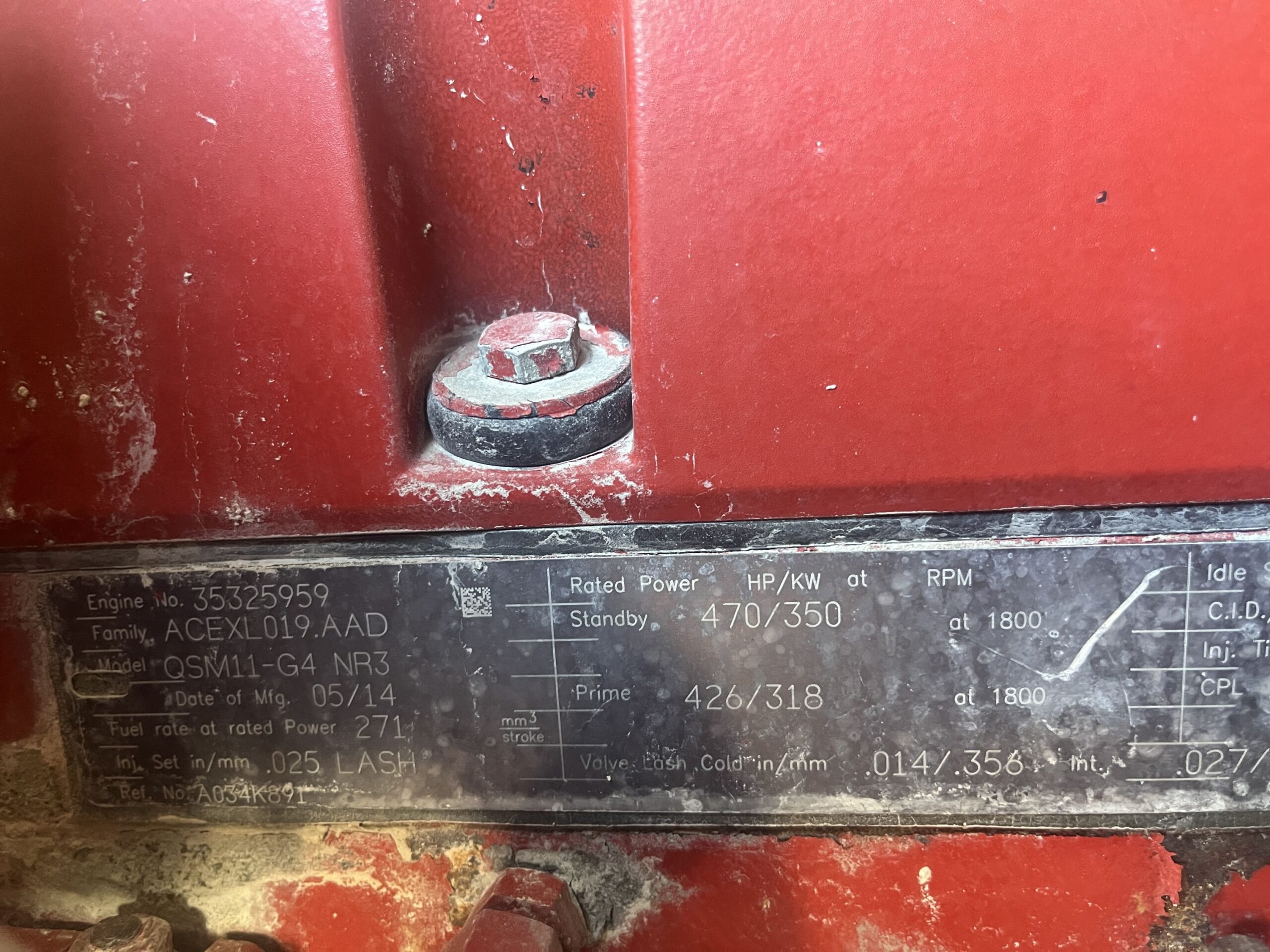

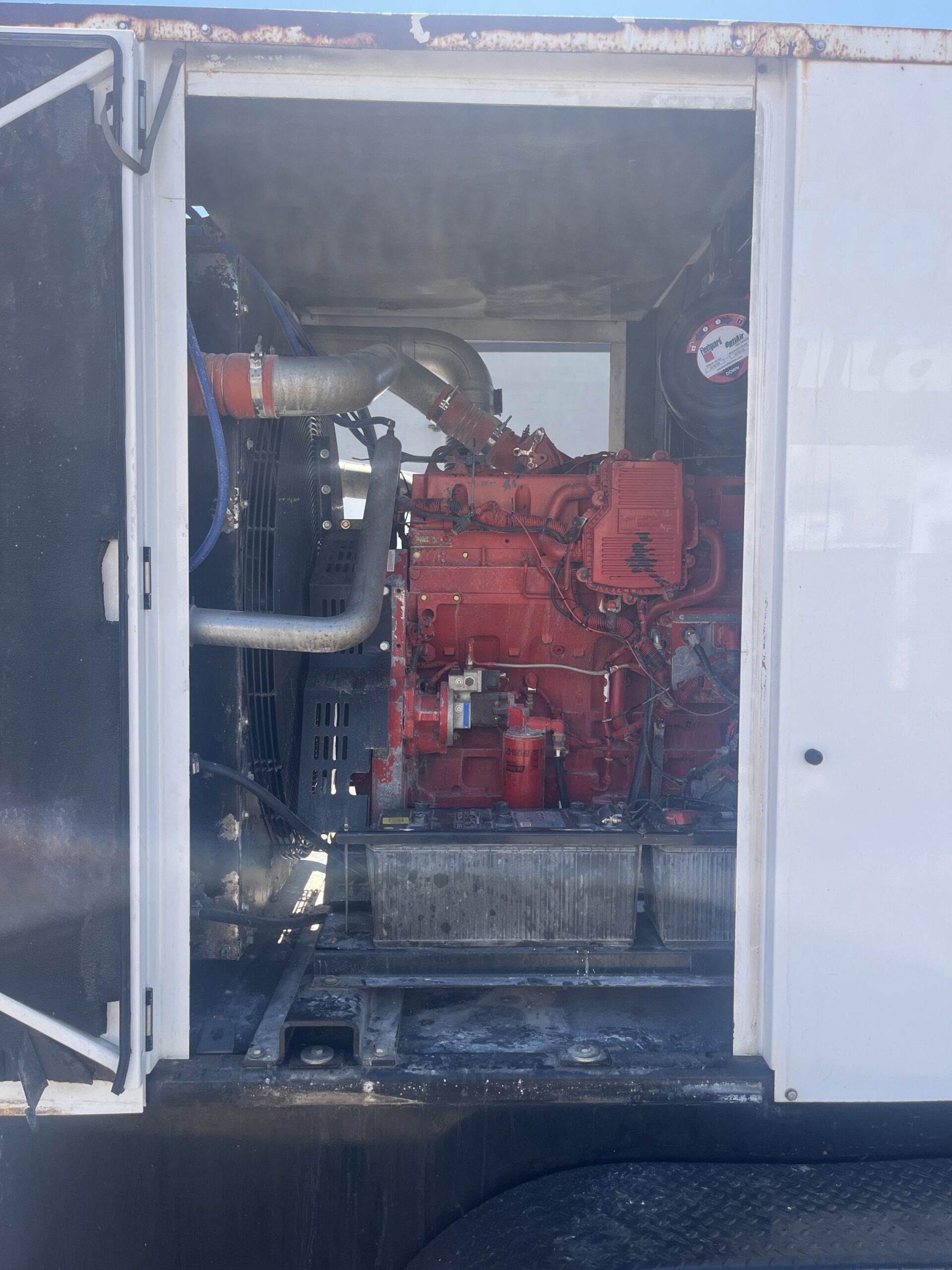

- Engine: QSM11-G4 NR3 – Family: ACEXL019.AAD – No.: 35325959

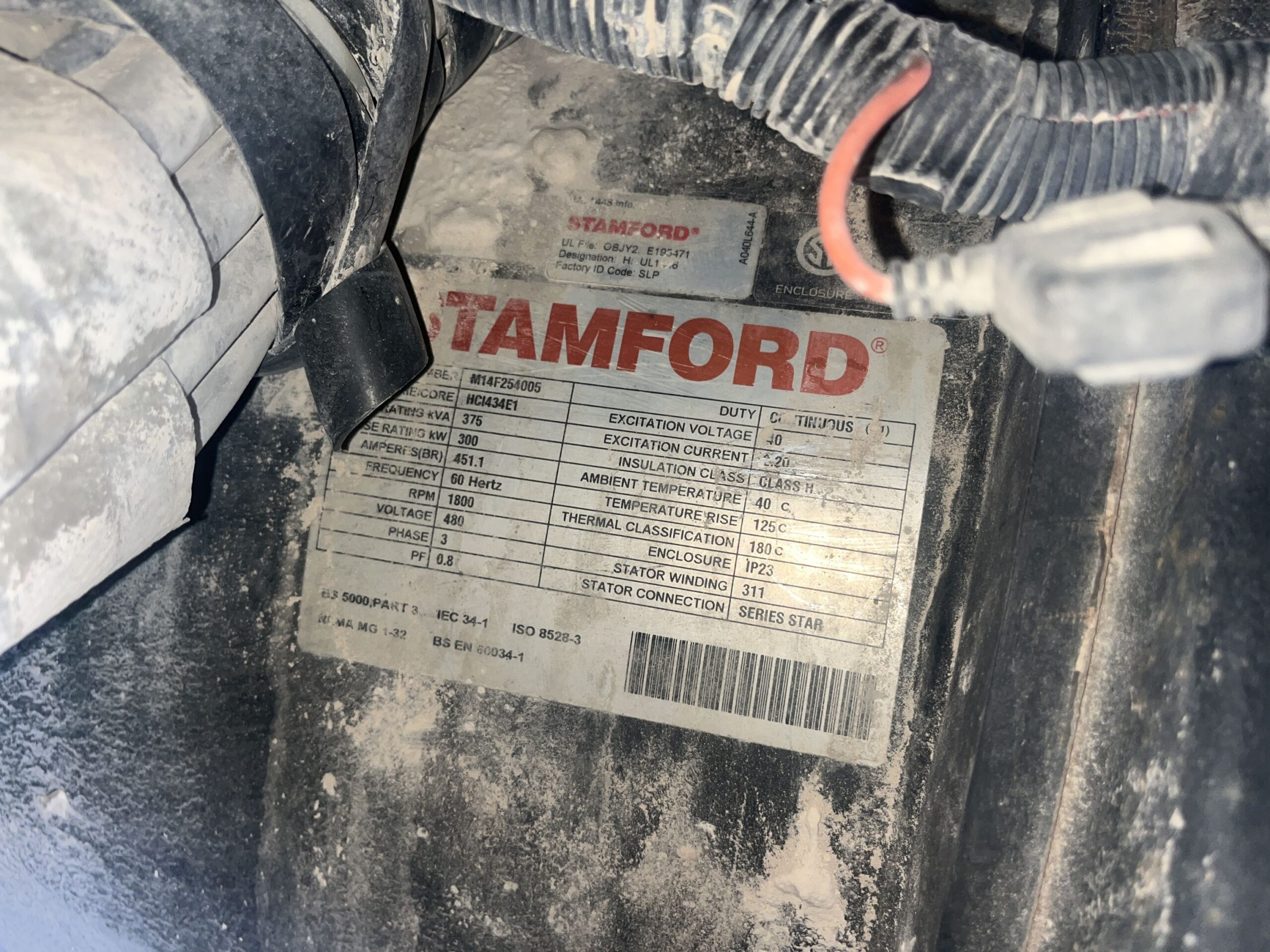

- Alternator: HCI434E1 – S/N: M14F254005
- 1800 RPM
- 60 Hz
- Battery: 24 VDC

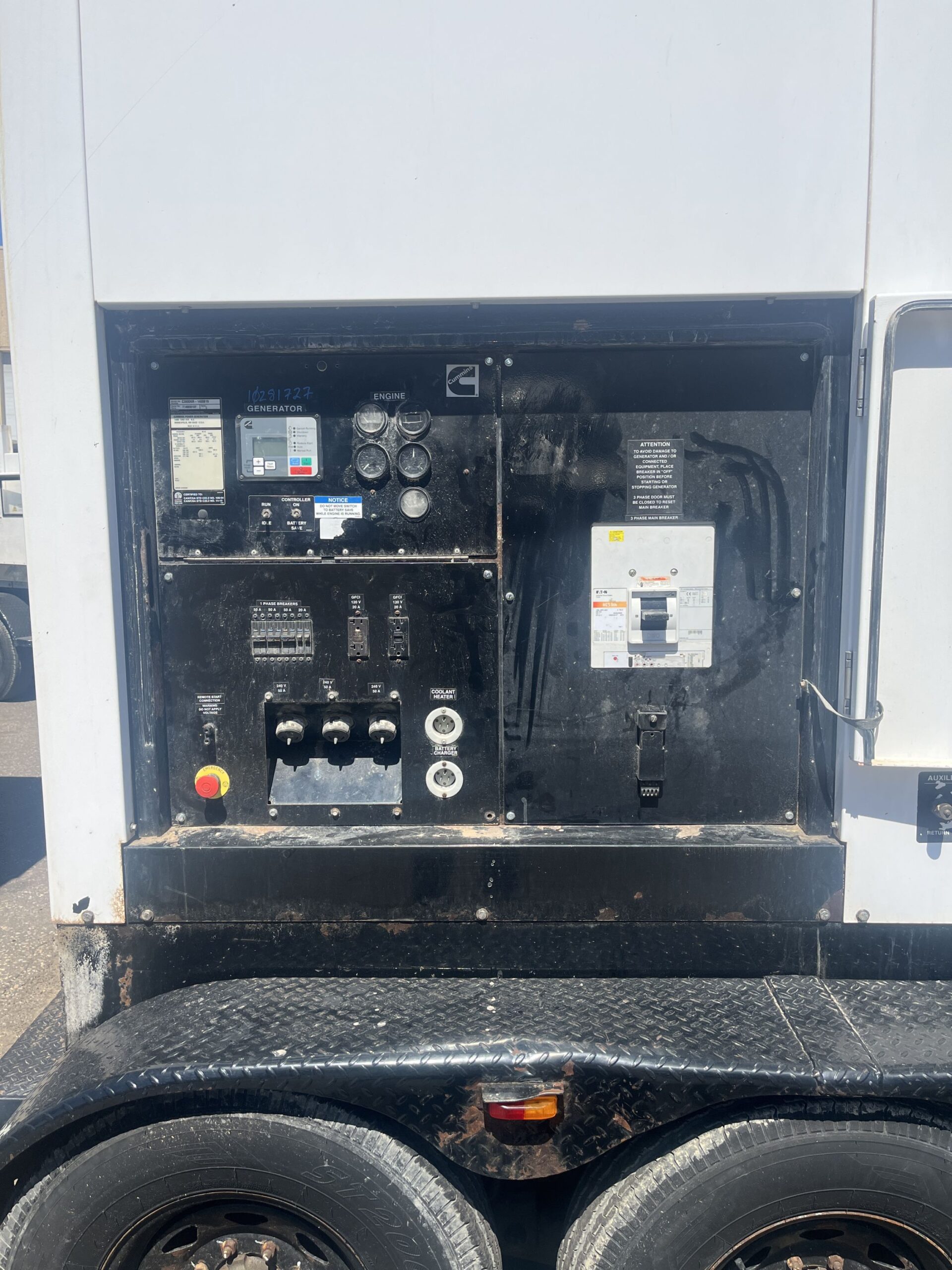

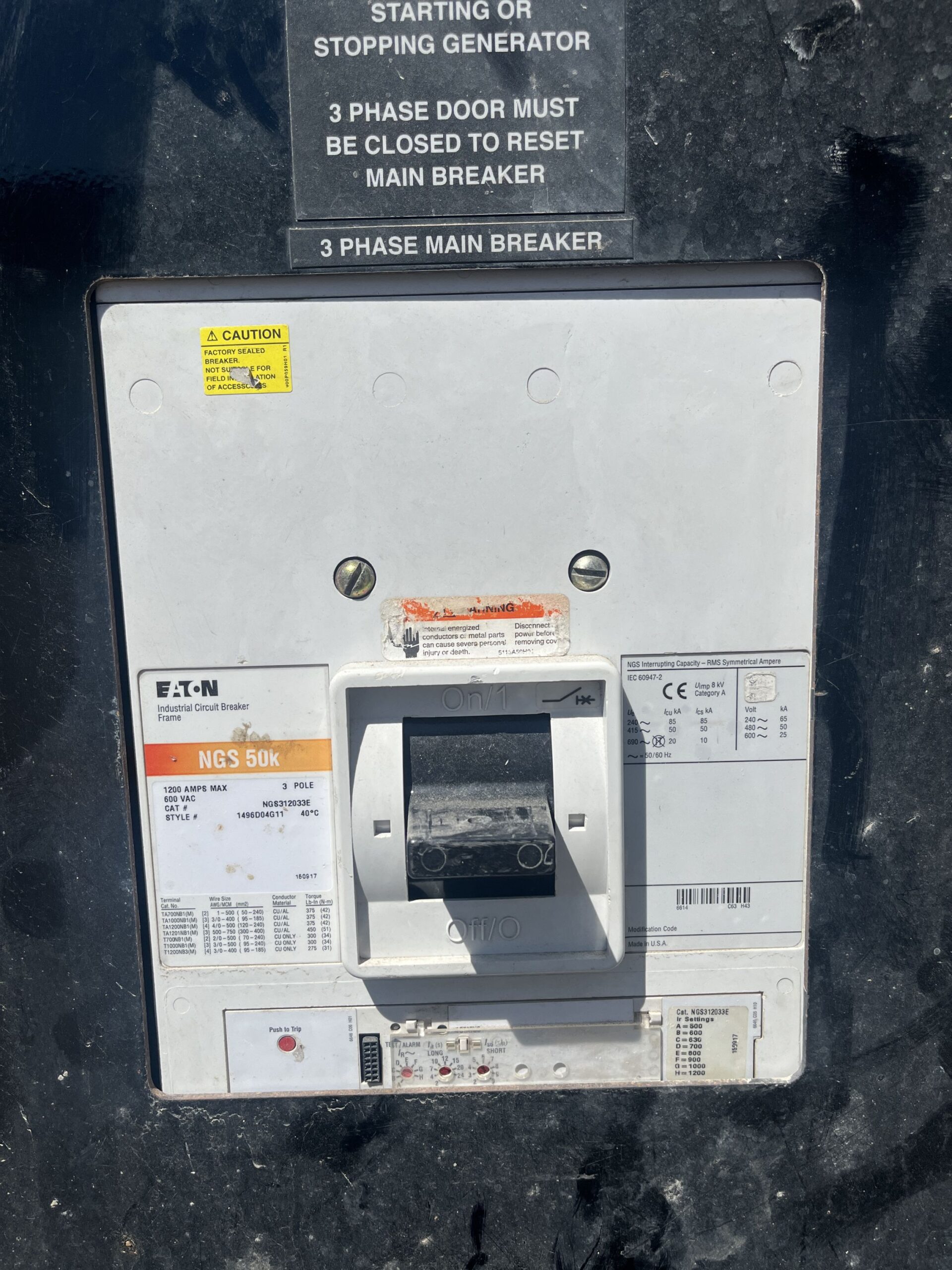

- Main Breaker: Eaton NGS 50K 3 Pole, 1200 Amp, 600VAC, CAT # NGS312033E, Style #: 1496D04G11

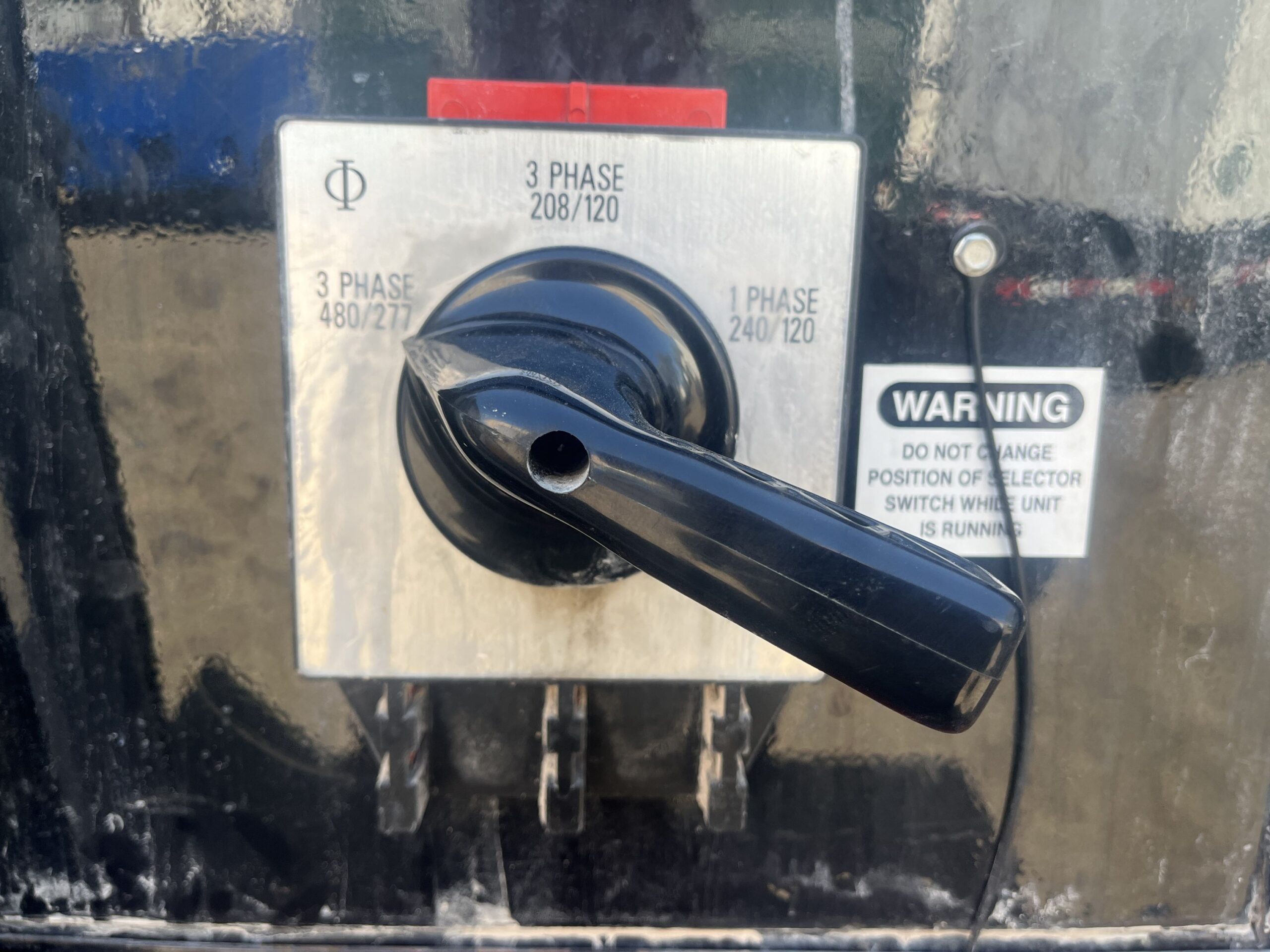

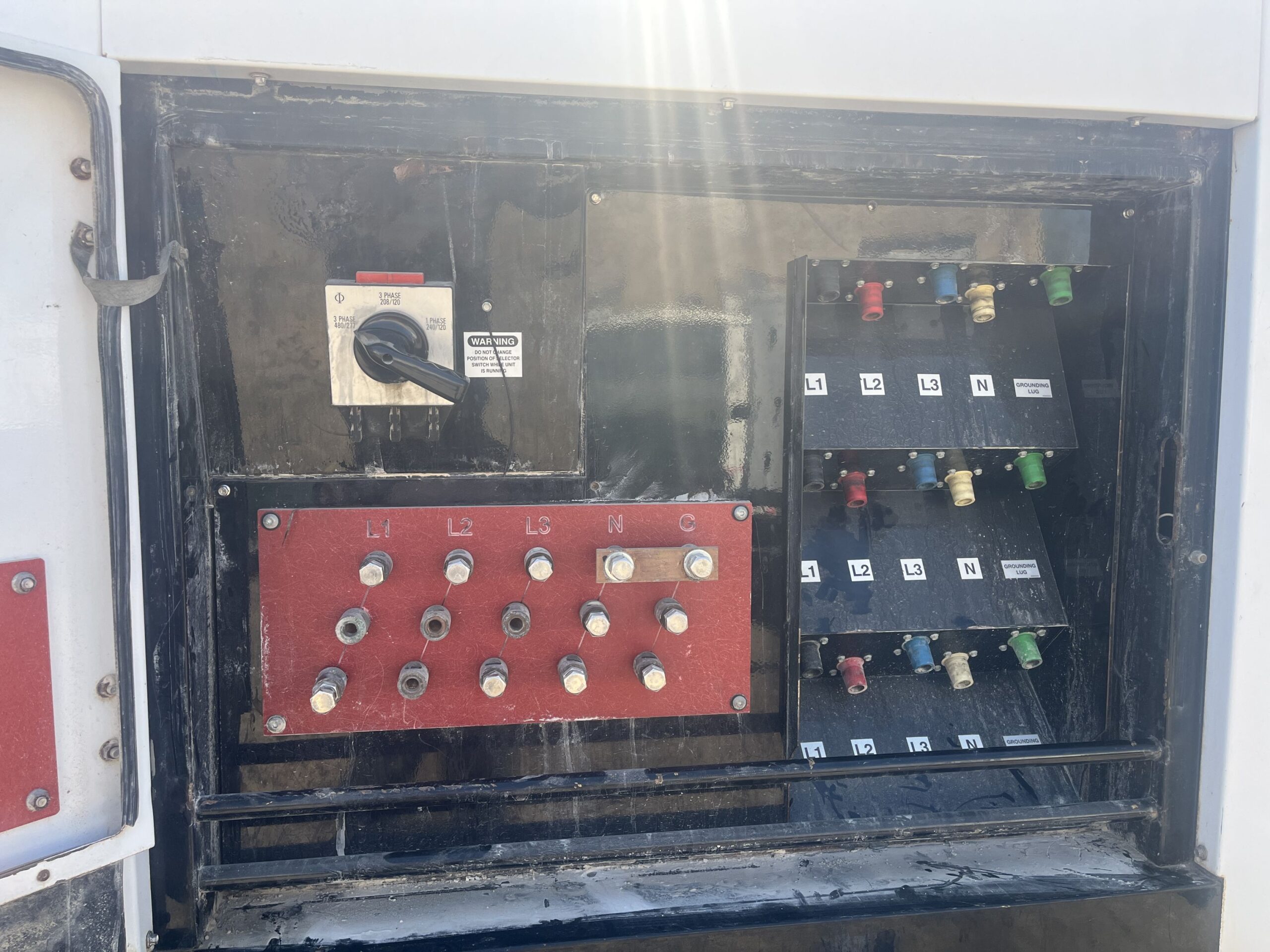

- 3 Position Voltage Selector Switch: 3 Ph 480/277, 3 Ph 208/120, 1 Ph 240/120

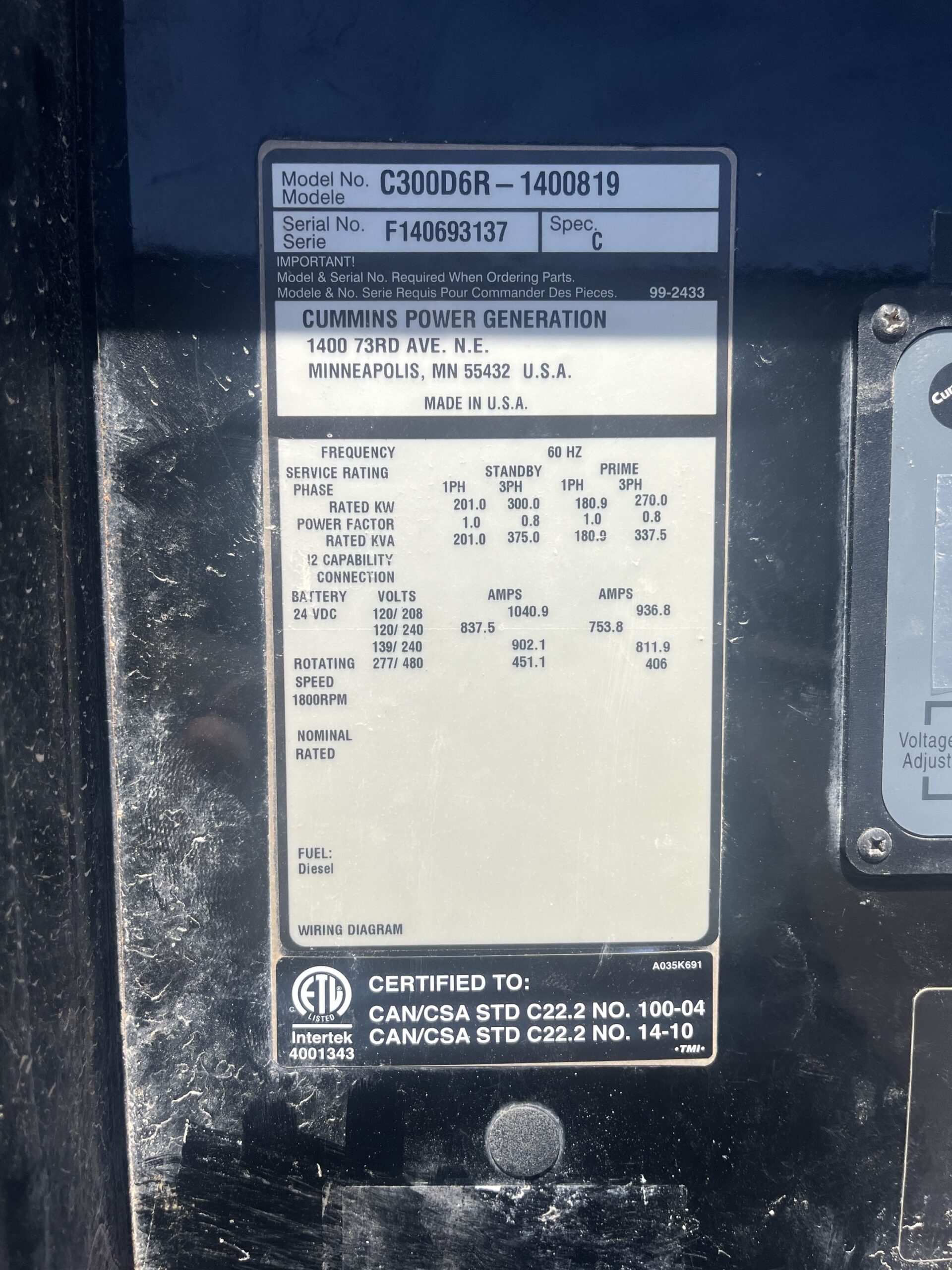

| Service Rating | Standby | Standby | Prime | Prime |
| Phase | 1PH | 3PH | 1PH | 3PH |
| Rated kW | 201 | 300 | 180.9 | 270 |
| Power Factor | 1 | 0.8 | 1 | 0.8 |
| Rated kVa | 201 | 375 | 180.9 | 337.5 |
| | | | |
| Volts | Amps | Amps | Amps | Amps |
| 120/208 | – | 1040.9 | – | 936.8 |
| 120/240 | 837.5 | | 753.8 | |
| 139/240 | – | 902.1 | – | 811.9 |
| 277/480 | – | 451.1 | – | 406 |
