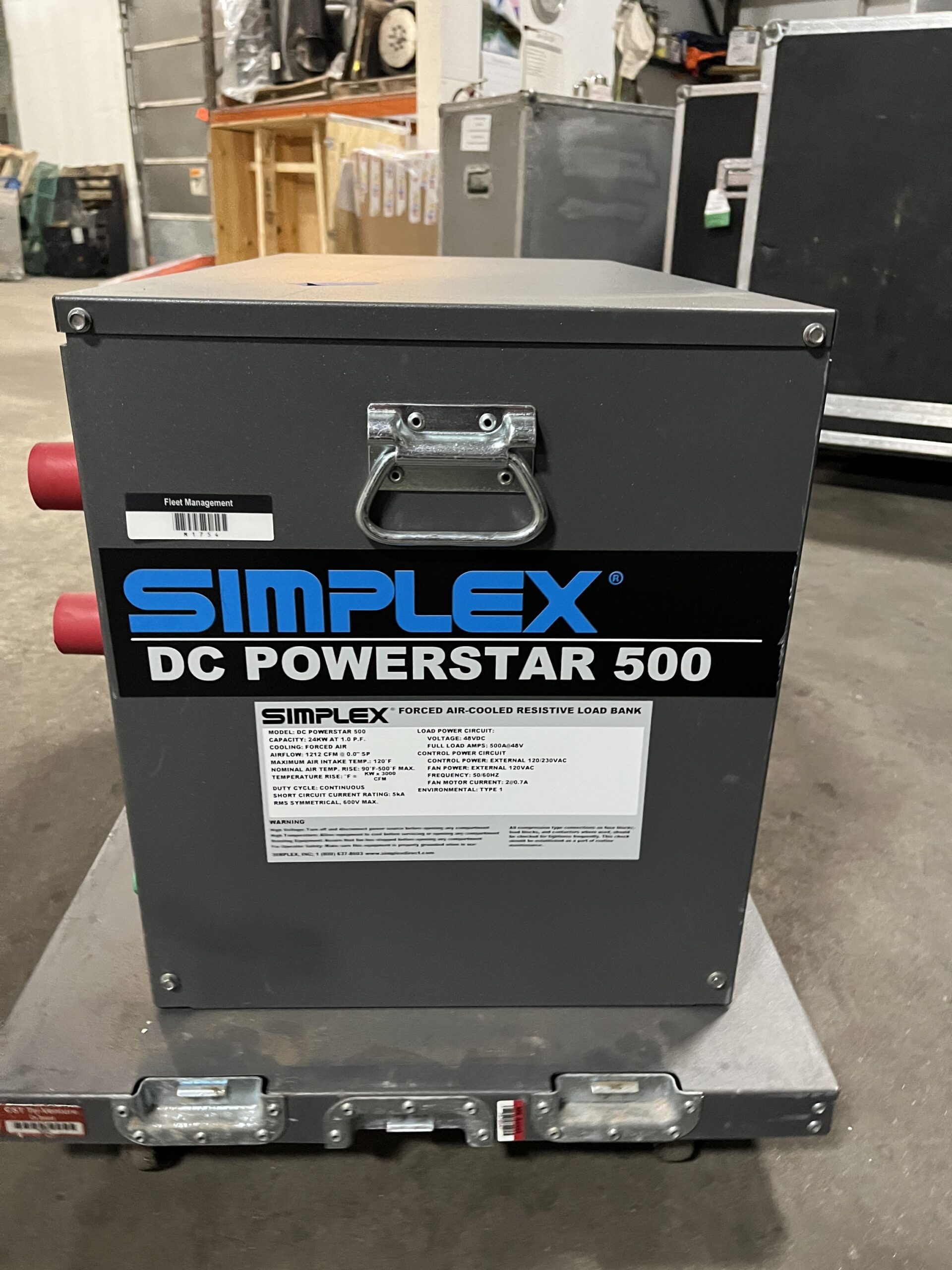

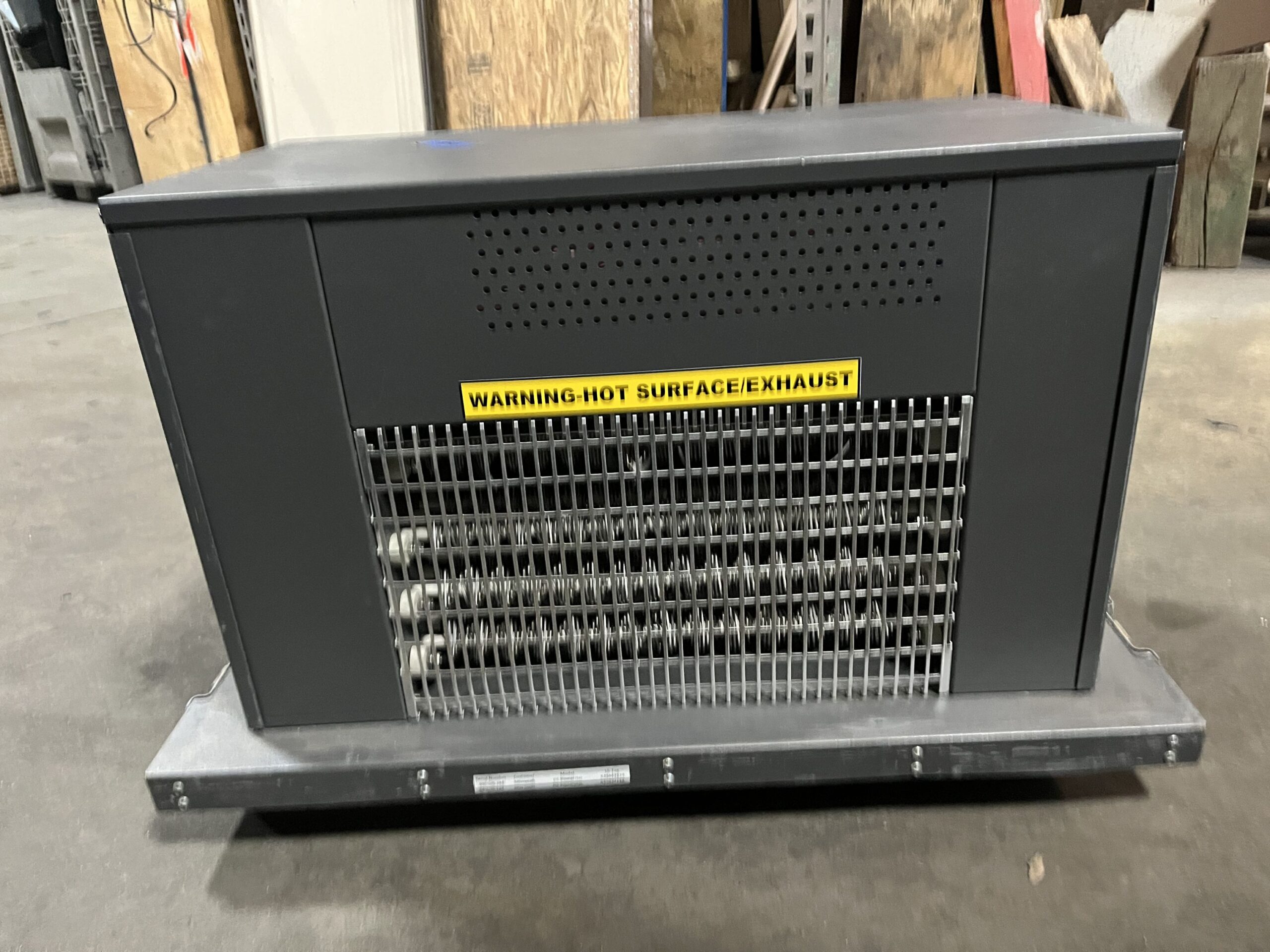

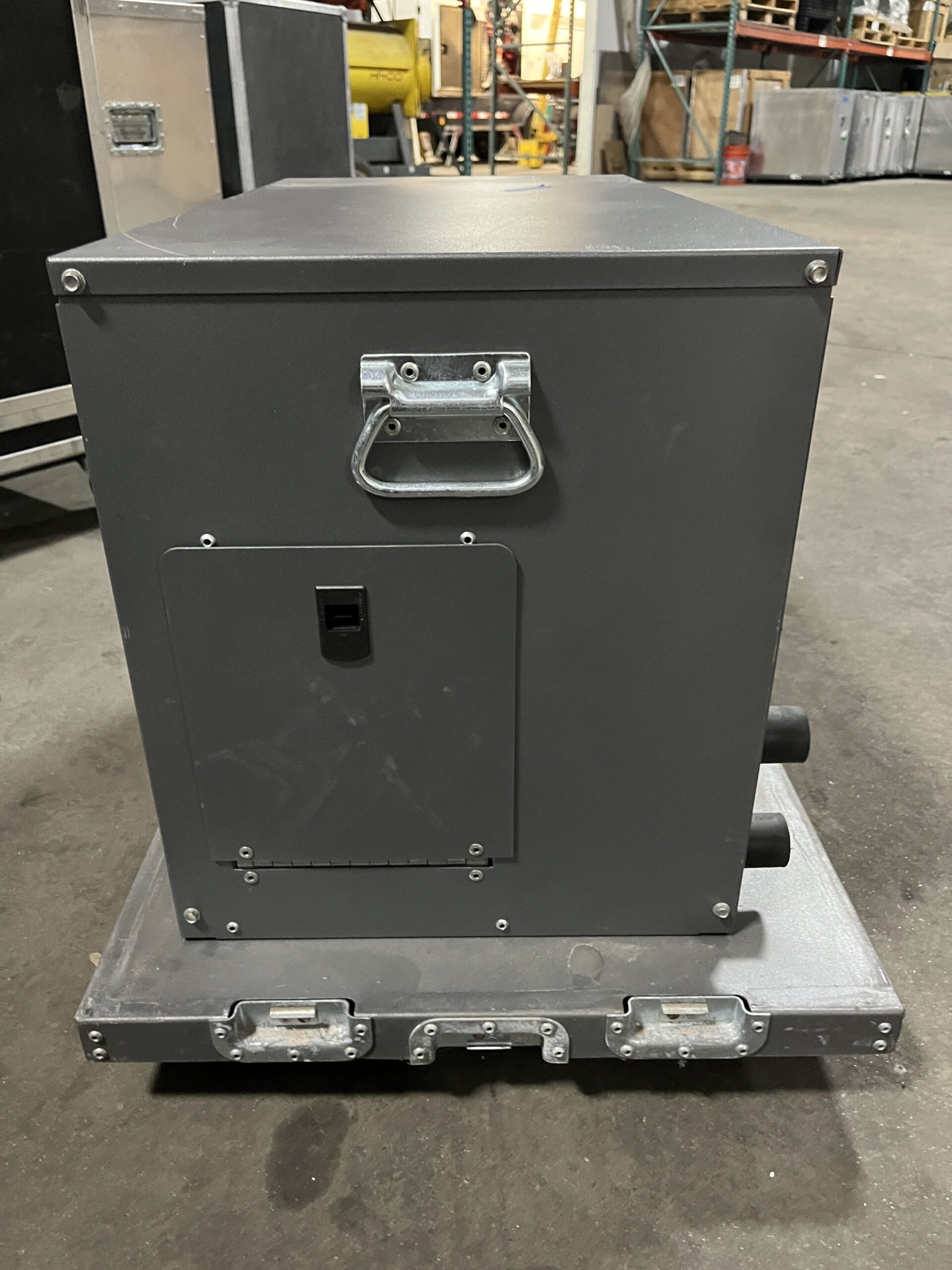

Simplex 24kw 500 Amp DC Powerstar500 Forced Air-Cooled Resistive Load Bank
- Used, obtained from a decommissioned data center
- Over 100 in stock and ready for shipment!
- Road case included for easy storage and transport

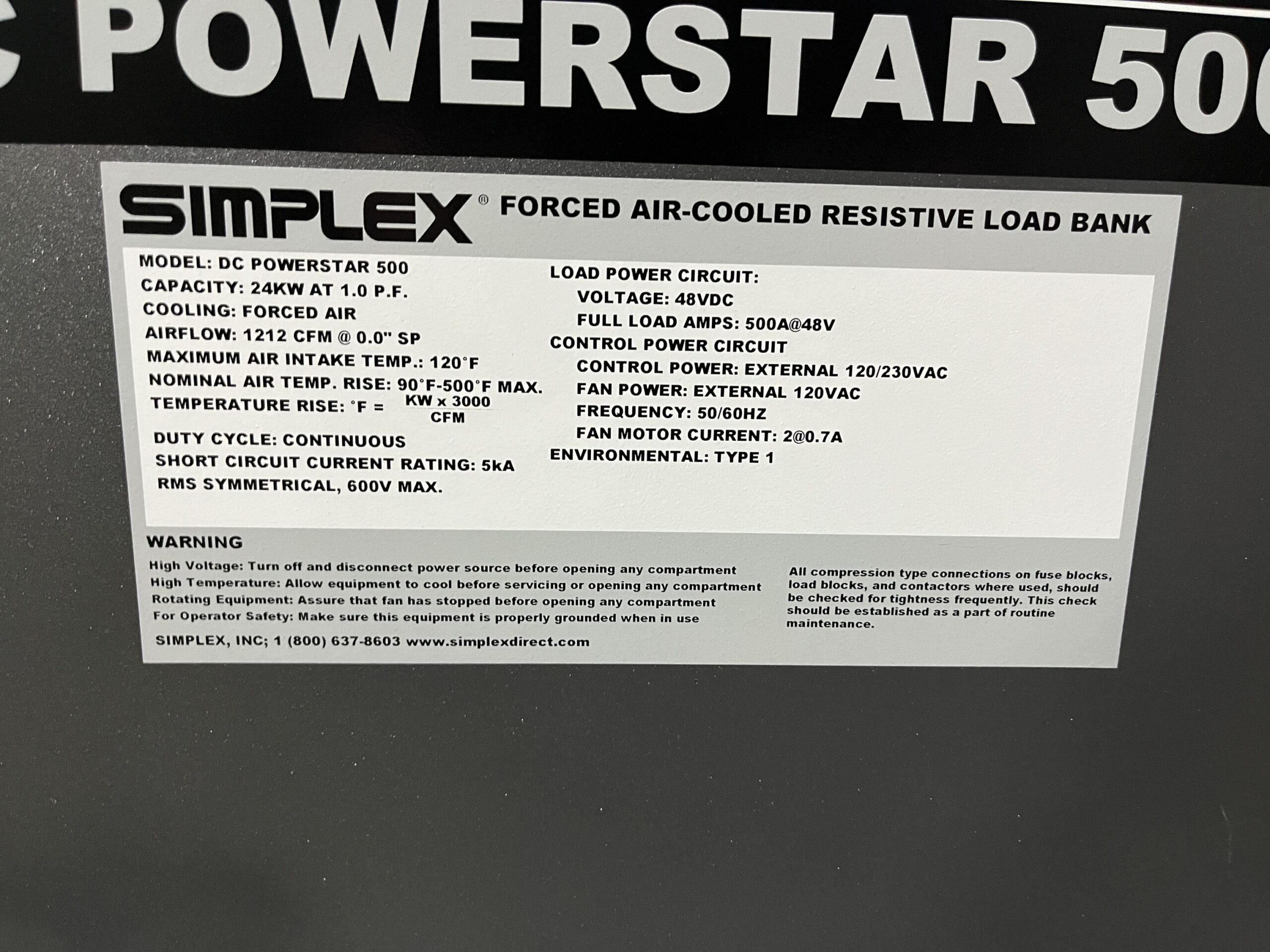

- Simplex DC Powerstar 500 Forced Air-Cooled Resistive Load Bank
- Capacity: 24kW @ 1.0 PF

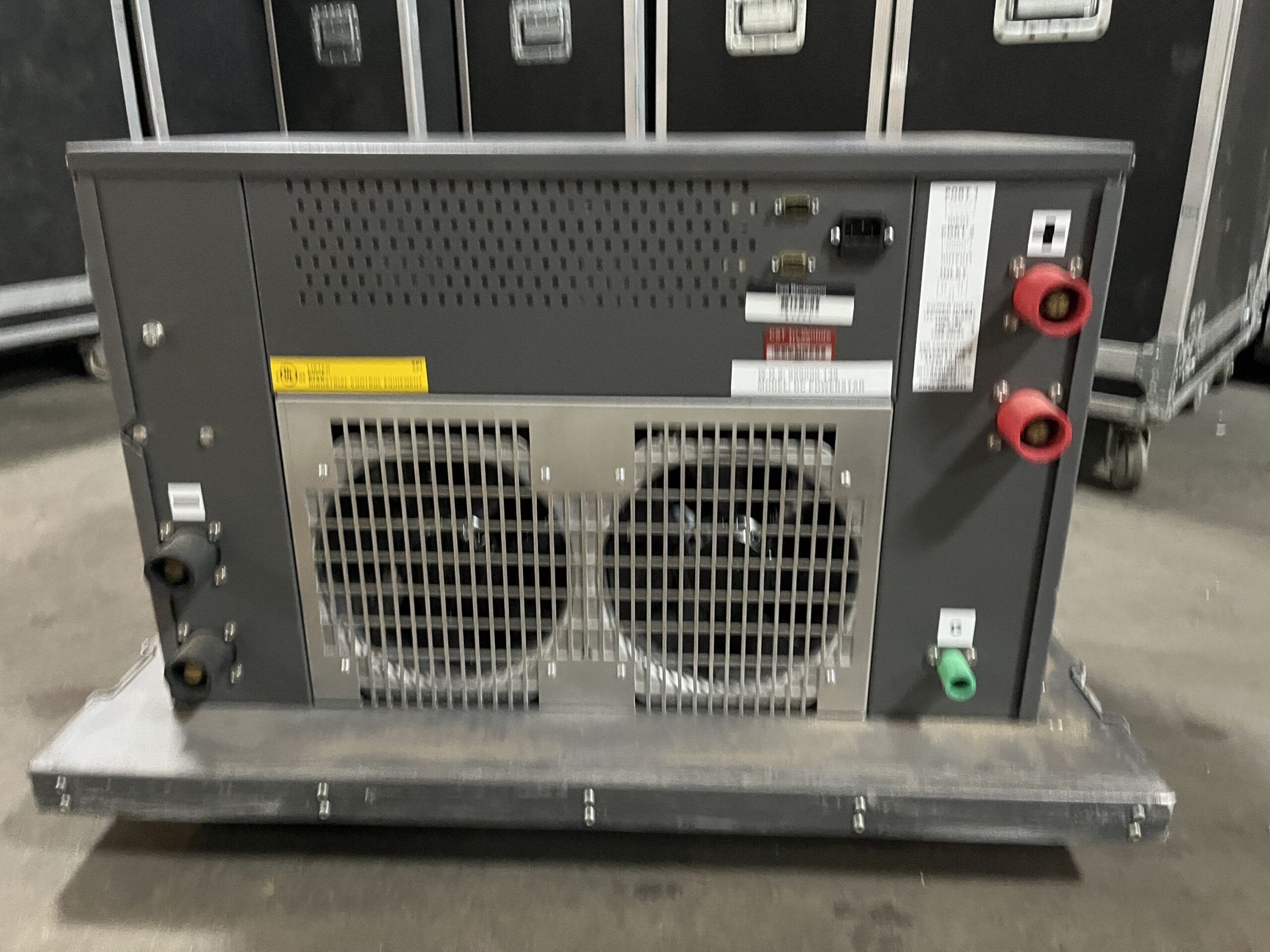

- Cooling: Forced-Air
- Airflow: 1212 CFM @ 0.0″ SP
- Maximum Air Intake Temp.: 120 F
- Nominal Air Temp Rise: 90 F – 500 F Max
- Temperature Rise: F= (Kw x 3000) / CFM
- Duty Cycle: Continuous
- Short Circuit Current Rating: 5kA
- RMS Symmetrical, 600V Max
- Load Power Circuit – Voltage: 48VDC , Full Load Amps: 500A @ 48V

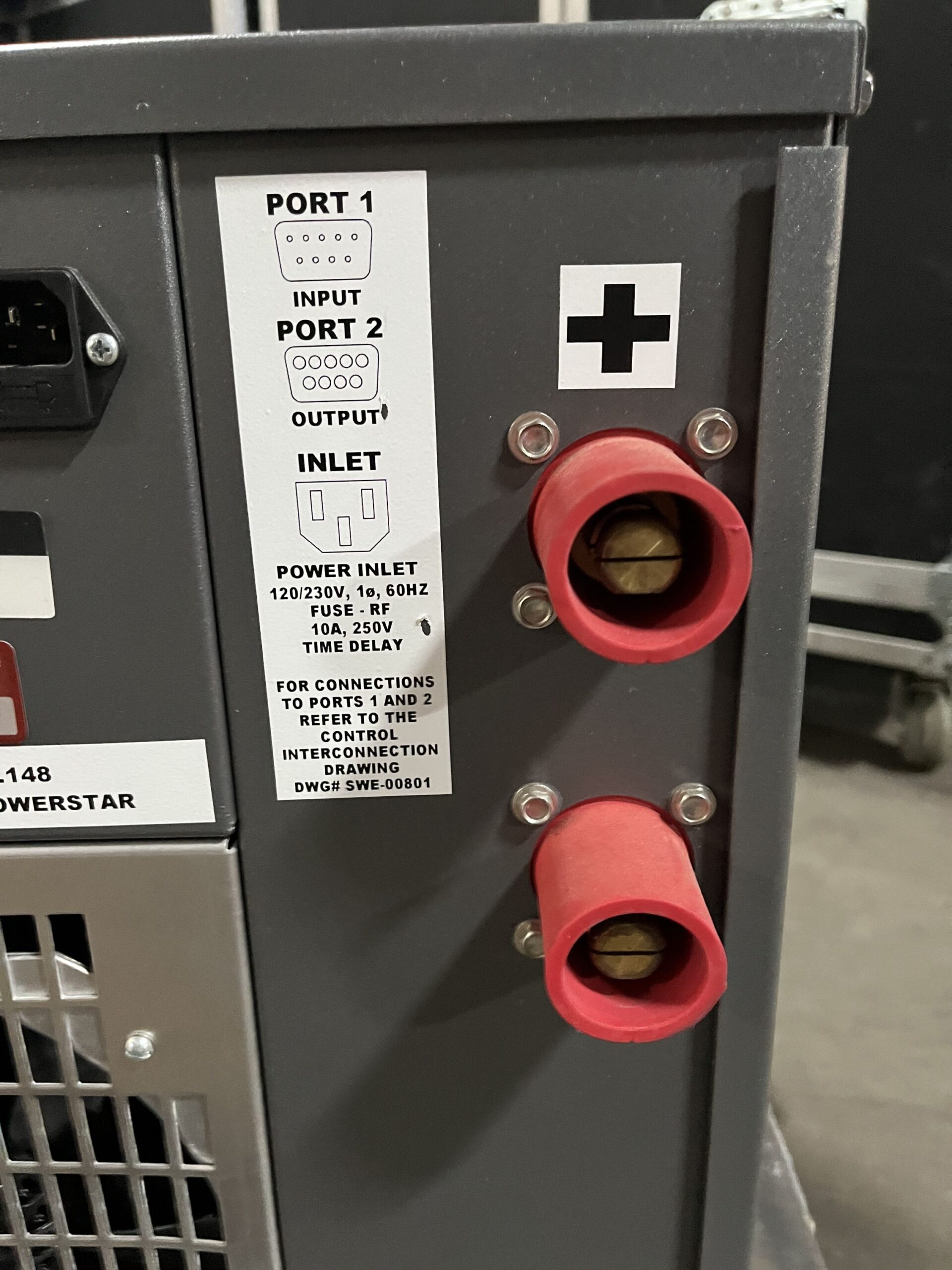

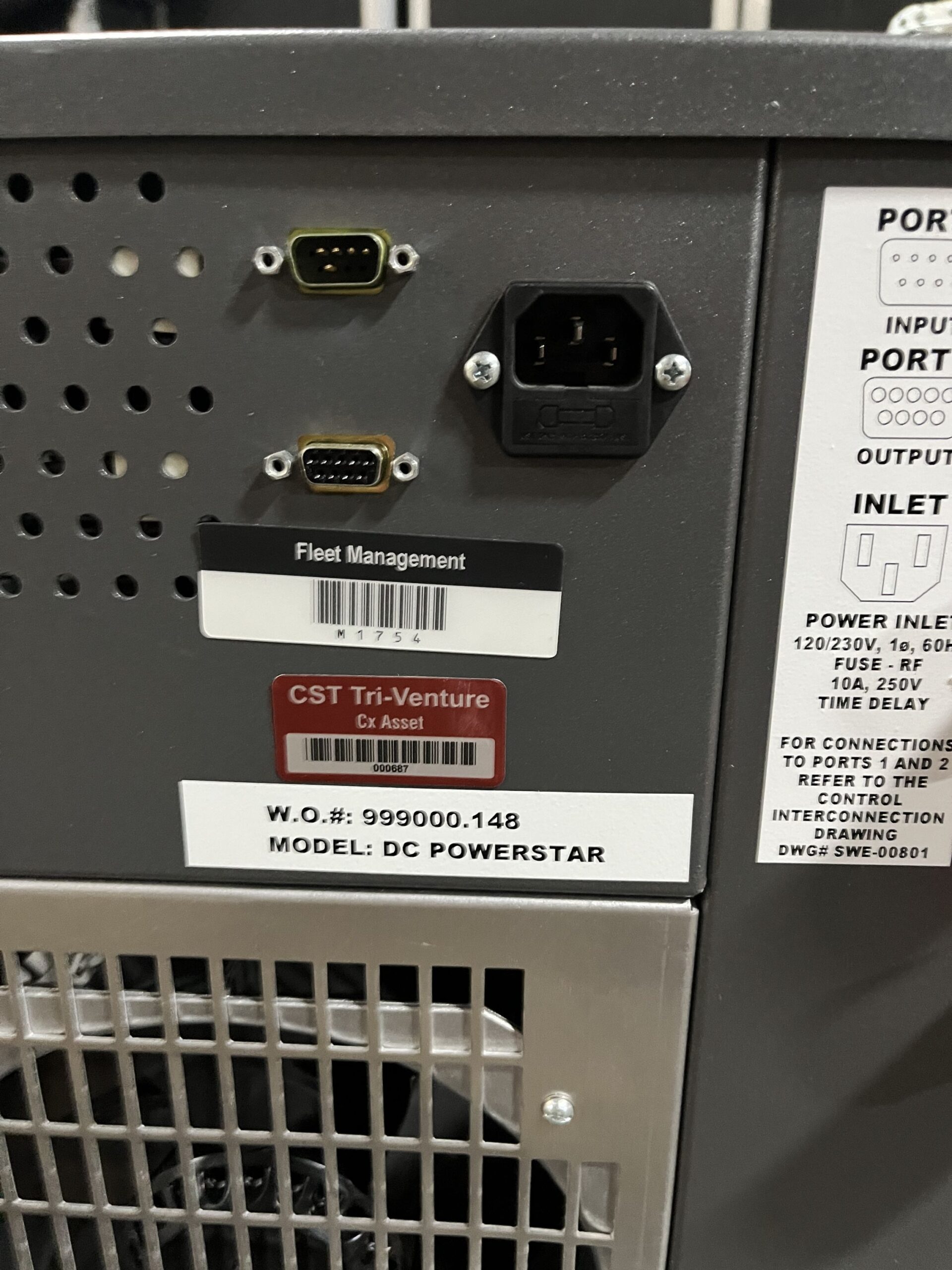

- Control Power Circuit – Control Power: External 120/230VAC , Fan Power: External 120VAC , Frequency: 50/60Hz , Fan Motor Current: 2 @ 0.7A
- Environmental: Type 1
